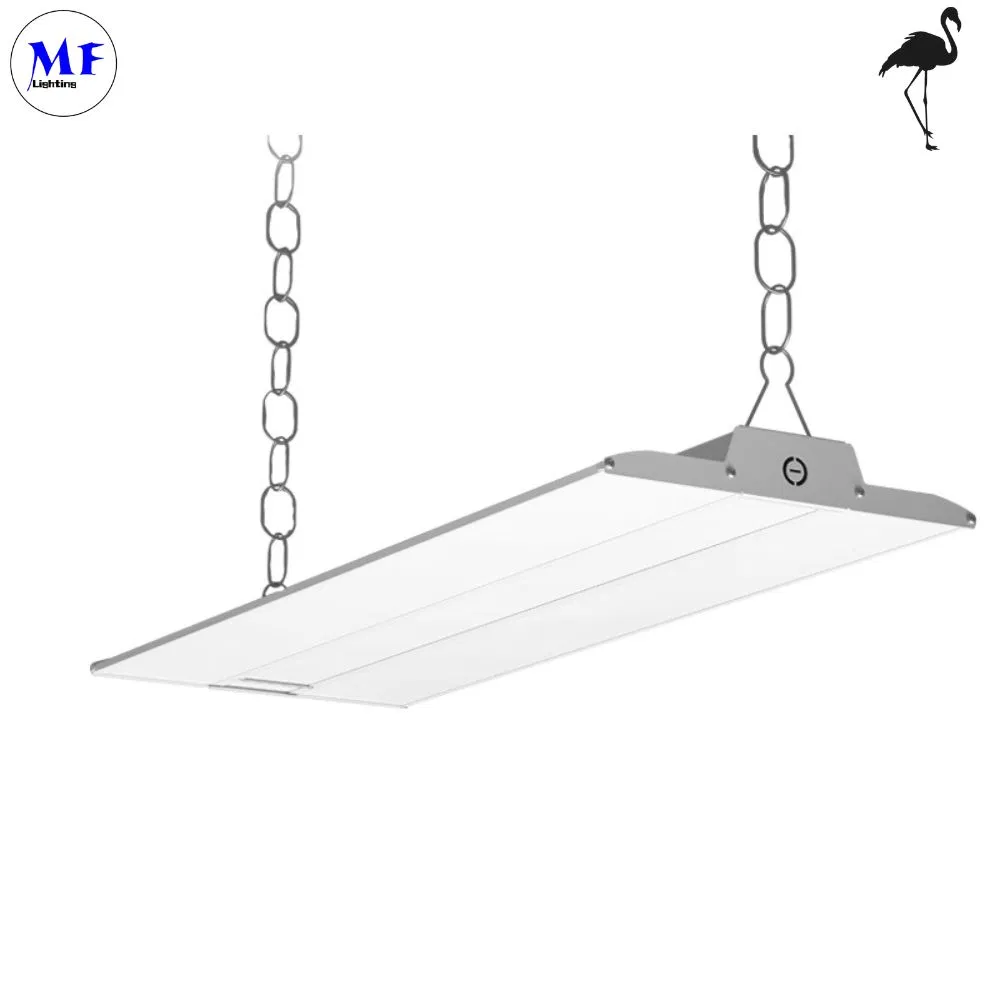

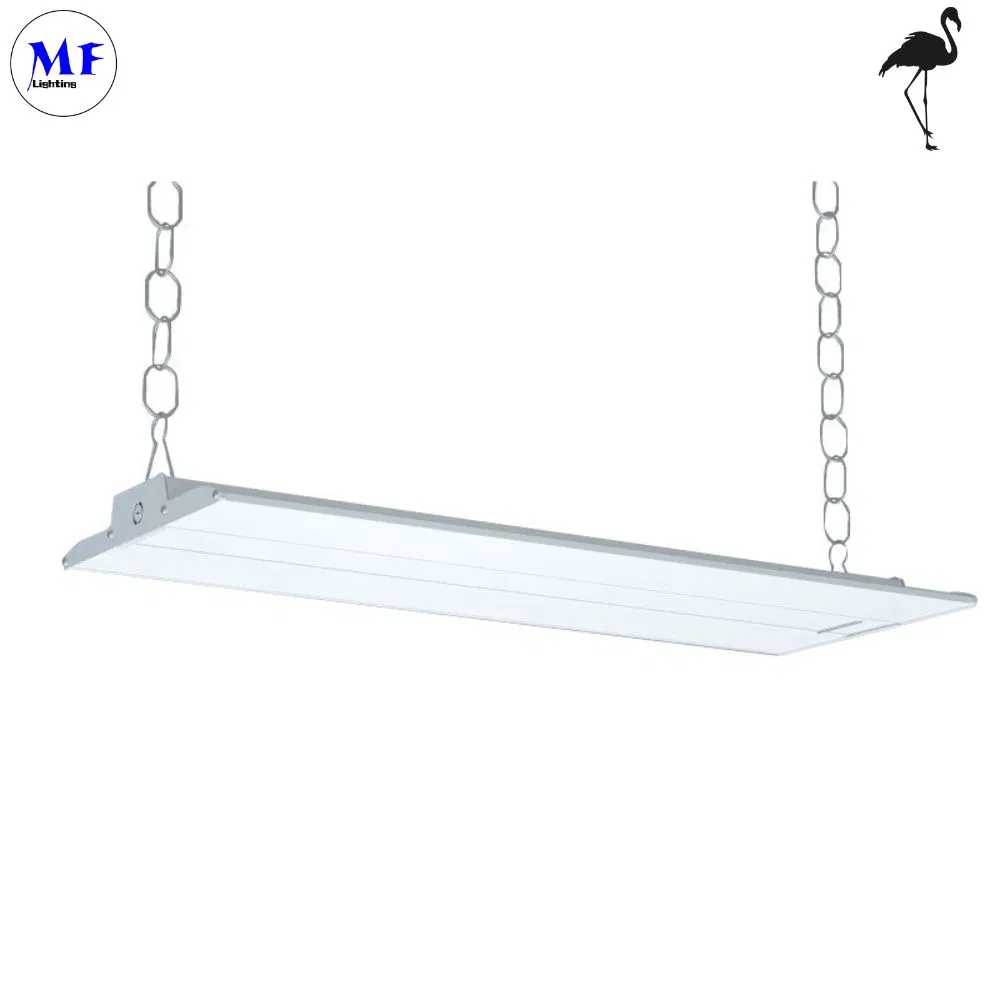

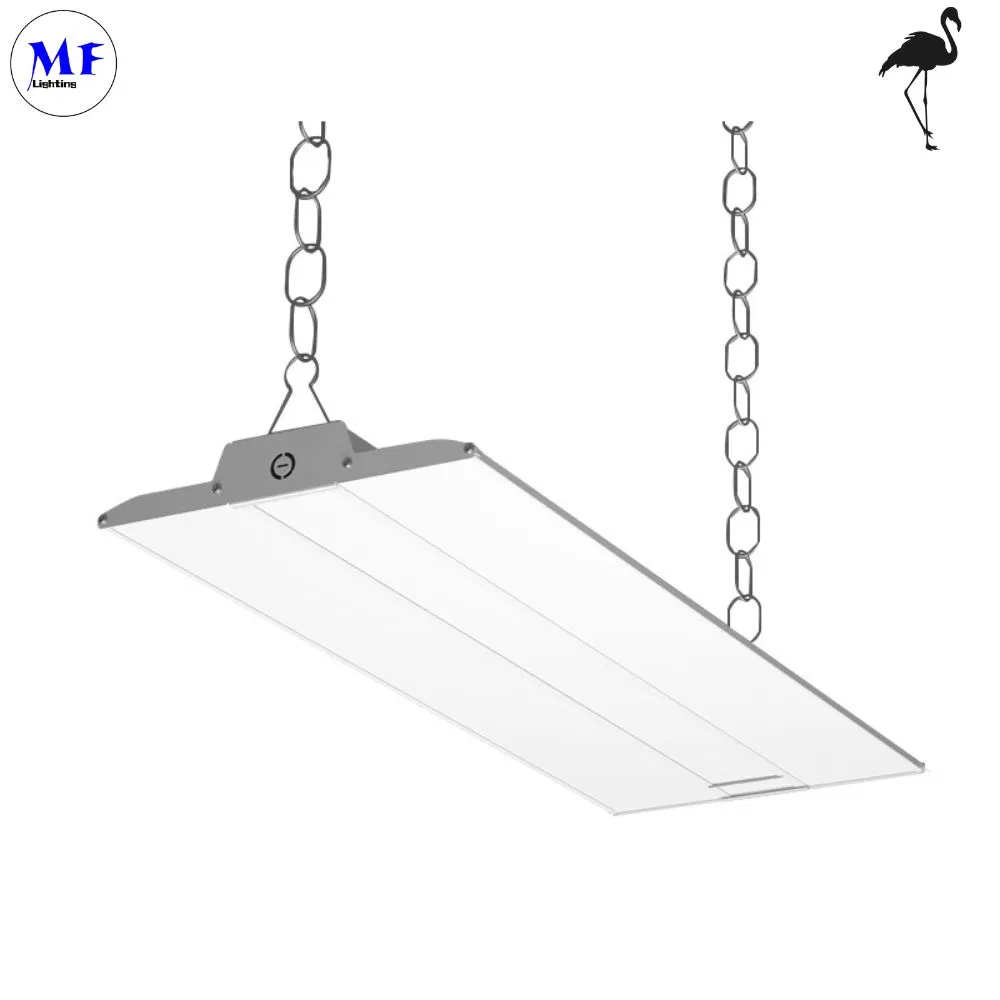

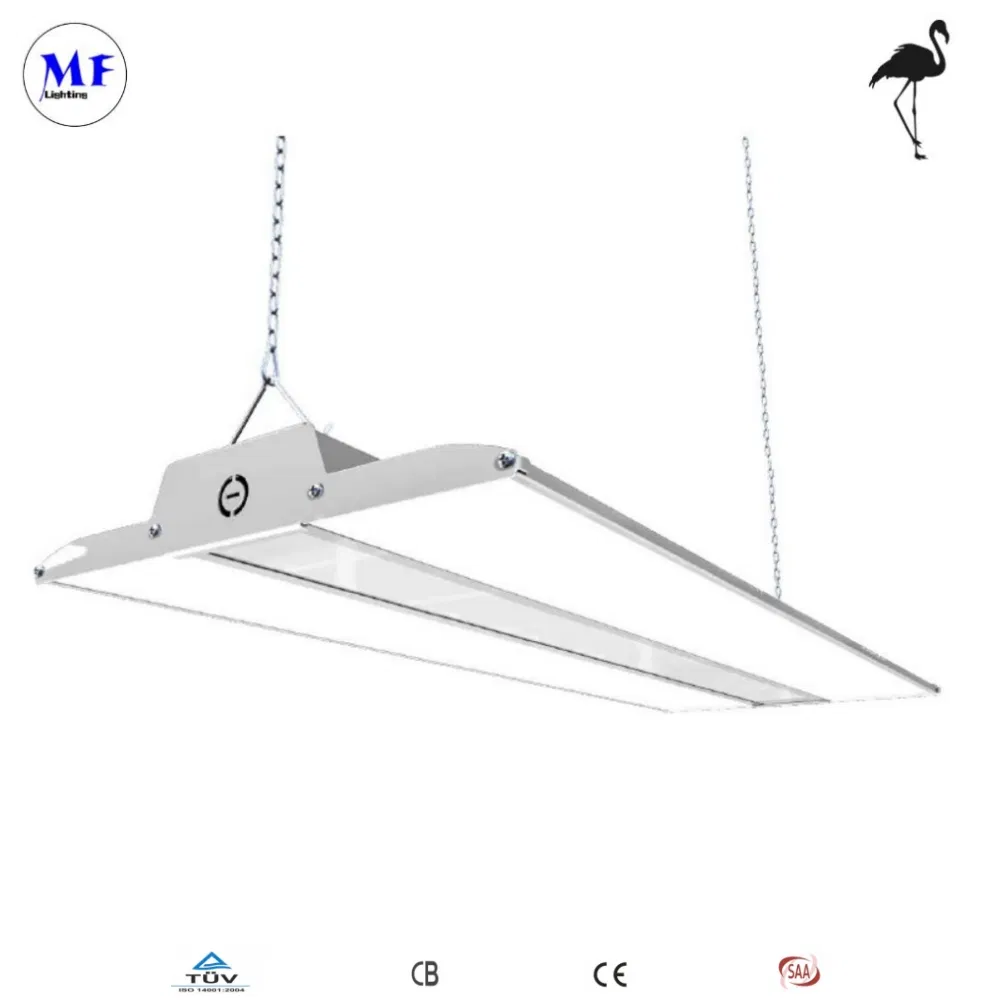

Industrial 40W/80W/100W/150W/200W/250W/300W Smart LED High Bay Light 200lm/W Linear Highbay Lighting for Office Building Manufacturing Plant Facility

Product Description

Industrial 40W/80W/100W/150W/200W/250W/300W Smart LED High bay Light 200LM/W Linear Highbay Lighting
🚀 Key Features
  • Housing material: Premium aluminum
  • High luminous output 200LM/W, energy saving up to 50%
  • Translucent lens standard to minimize glare
  • L80 lumen maintenance of 100,000 hours
  • Intelligent control: Infrared remote, Zigbee, Bluetooth Mesh, high-altitude microwave sensor
  • Supports heat map and light decay compensation (Zigbee version)
  • Multiple Mounting Options: Suspended mounted
💡 ENERGY SAVING CONTROL DIM - 0-10 volt dimming enabled with compatible controls.
⏳ EXPECTED LIFE 100,000 hours depending upon ambient temperature.
✨ LEDS High-brightness LEDs in Warm White, Neutral White, or Cool White.
🛡️ WARRANTY Professional 5 years warranty.
🌡️ OPERATING TEMP -3° C to +55°C (-40°F to +122°F).
💧 RATING Fixture is IP22 rated for industrial safety.

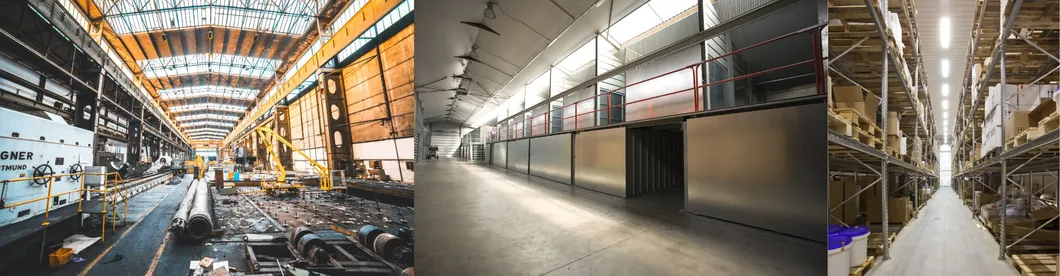

LED High Bay Light Overview
📊 Product Parameters (150LM/W)
WATT LUMEN OUTPUT LED CHIP EFFICACY LED QTY ANGLE CCT/CRI VOLTAGE
40W6000lmLu-miled 2835150 LM/W72pcs120°3000K-6500K / >80AC100-277V / 347V / 480V 50/60Hz
80W12000lm144pcs
100W15000lm168pcs
150W22500lm250pcs
200W30000lm336pcs
250W37500lm416pcs
300W45000lm500pcs
📊 Product Parameters (200LM/W)
WATT LUMEN OUTPUT LED CHIP EFFICACY LED QTY ANGLE CCT/CRI VOLTAGE
40W8000lmLu-miled 2835200 LM/W150pcs120°3000K-6500K / >80AC100-277V / 347V / 480V 50/60Hz
80W16000lm150pcs
100W20000lm300pcs
150W30000lm300pcs
200W40000lm450pcs
250W50000lm450pcs
300W60000lm600pcs
📐 Dimensions & Accessories

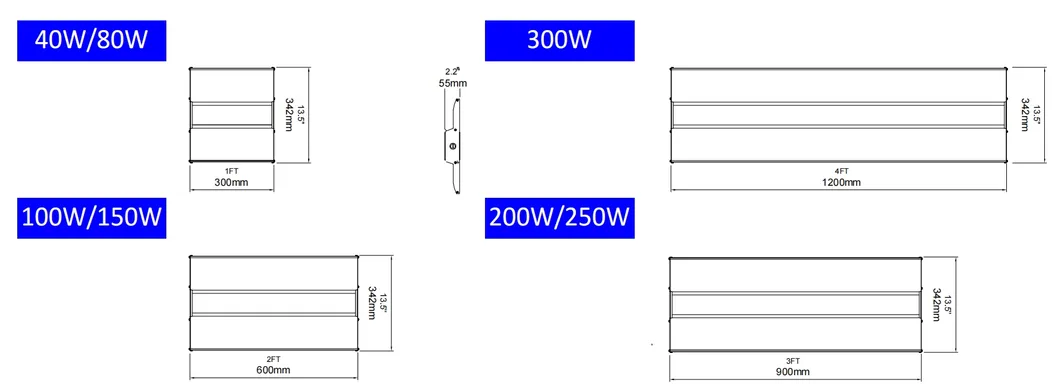

Dimensions

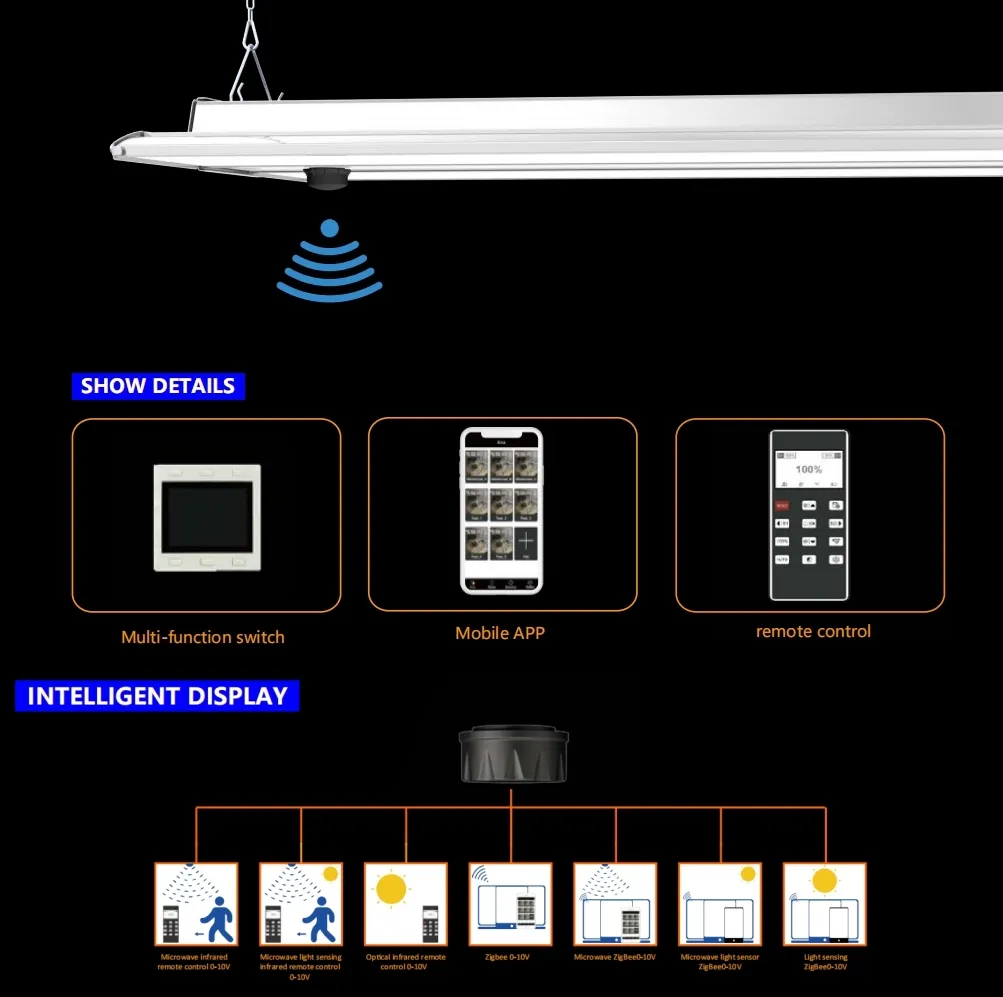

Accessories

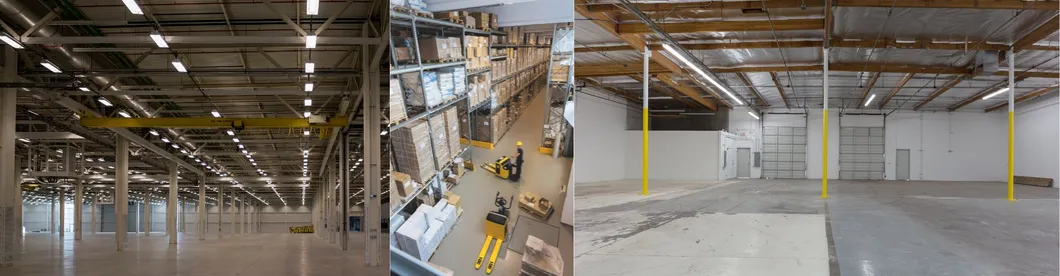

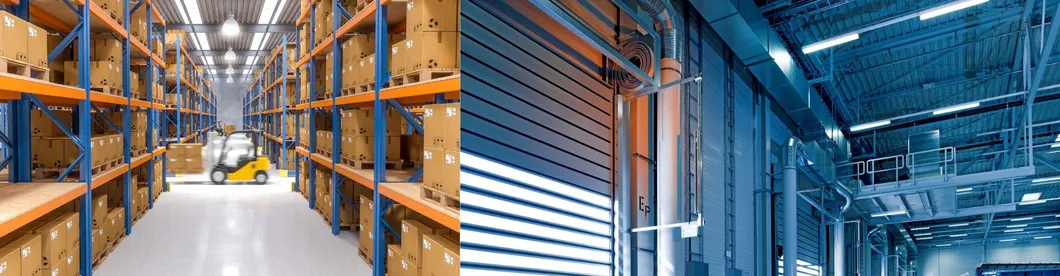

🏢 Applications

LED High Bay Lights are versatile lighting solutions designed for high-ceiling environments. Widely used in:

  • Factory & Manufacturing Plants
  • Warehouses & Logistics Centers
  • Exhibition Halls & Retail Big Box Stores

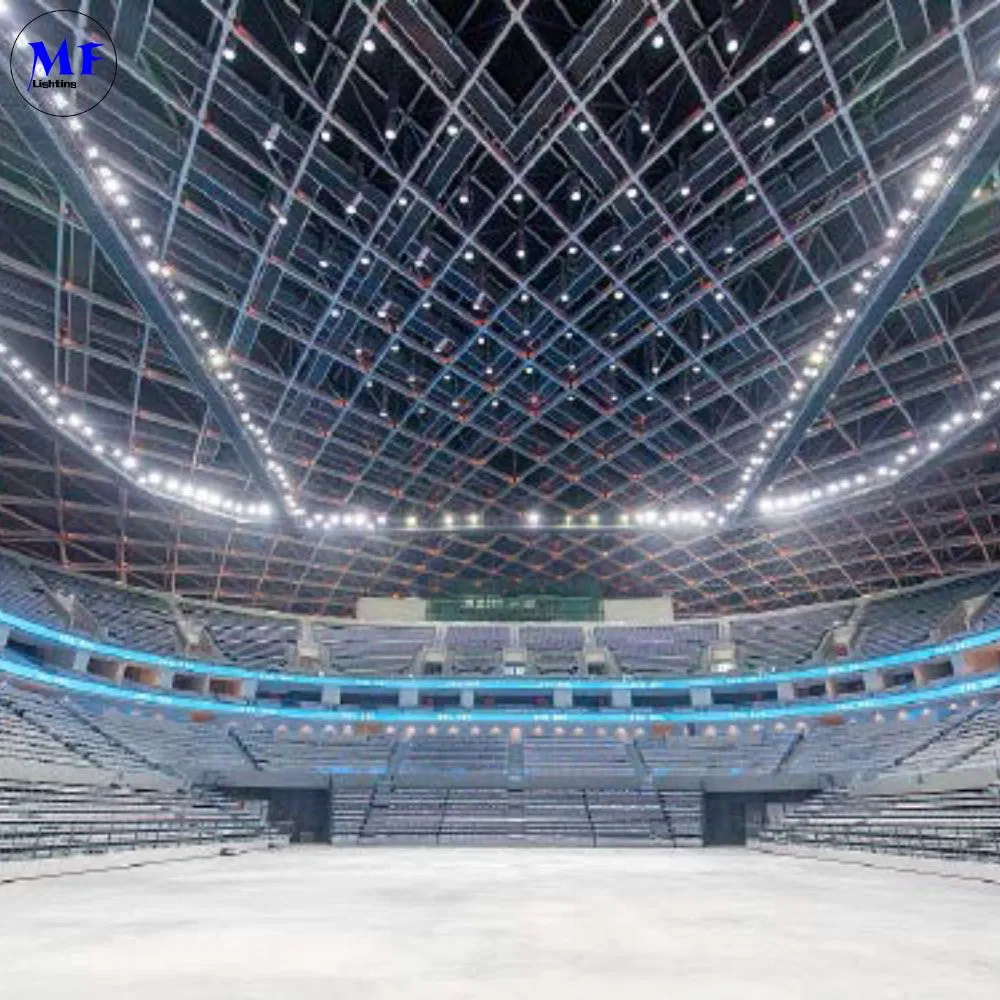

  • Gymnasiums & Indoor Sports Venues (Basketball, Badminton)
  • Parking Garages & Loading Docks
  • Supermarkets & Shopping Malls

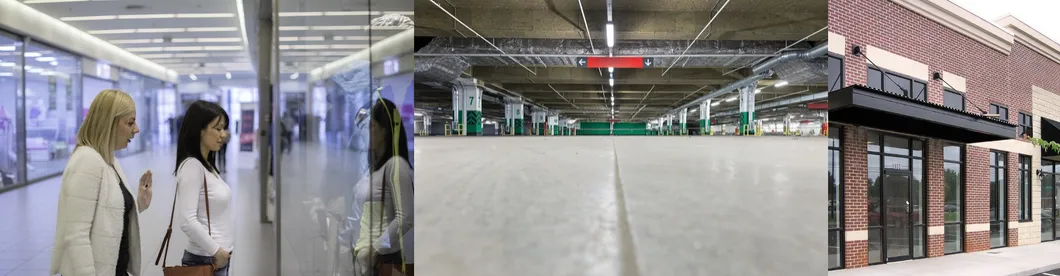

App 1 App 2
App 3 App 4

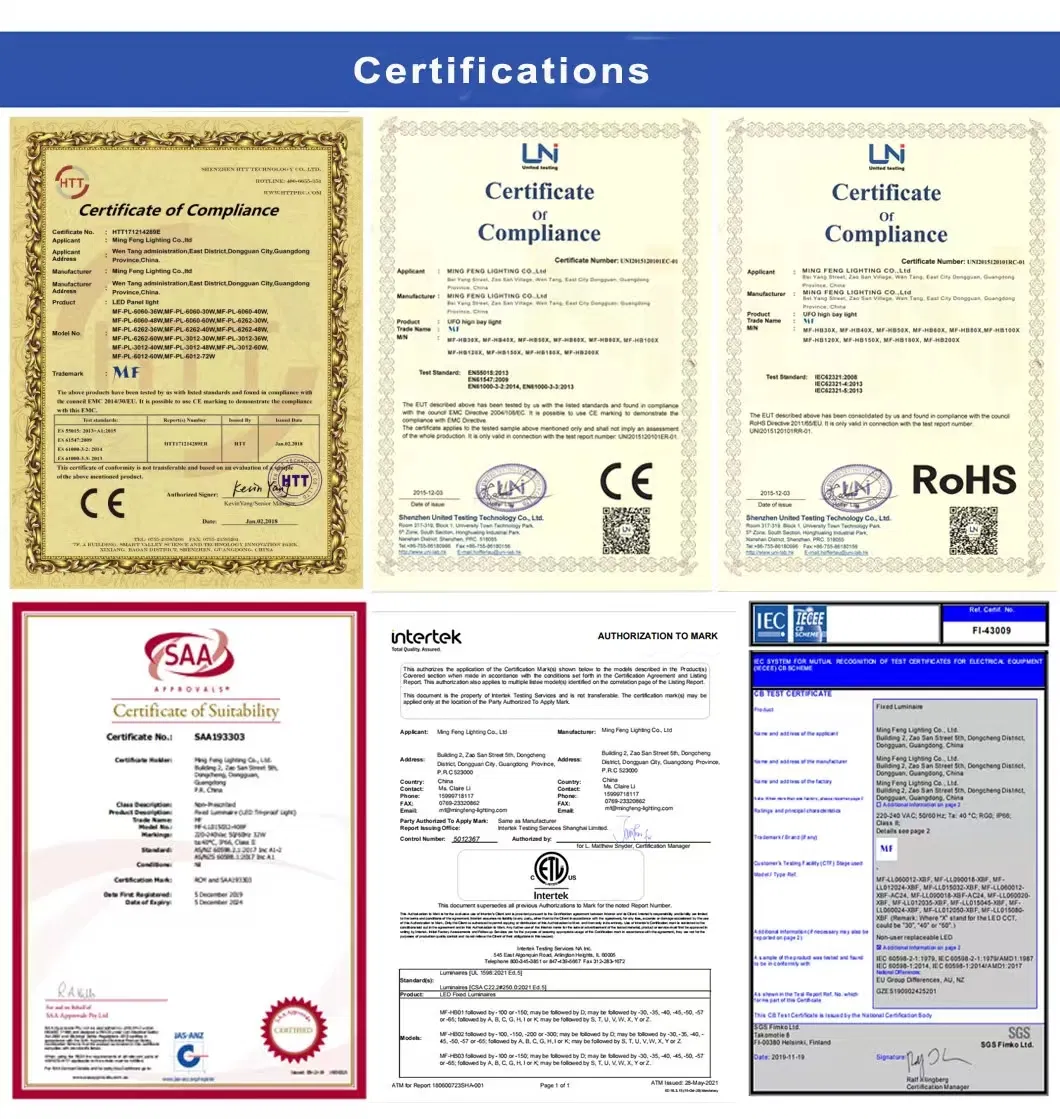

Application Details
📦 Packaging Data
Part Number Dimensions (MM) N.G (KG) G.W (KG) Package Size (MM) Warranty Lifespan
MF-HB40W-L2300 L x 342 W x 55 H1.9kg4.7kg345 L x 387 W x 228 H5 Years≤100,000hrs
MF-HB80W-L2
MF-HB100W-L2600 L x 342 W x 55 H3kg7.7kg645 L x 387 W x 228 H
MF-HB150W-L2
MF-HB200W-L2900 L x 342 W x 55 H4.3kg11.5kg945 L x 387 W x 228 H
MF-HB250W-L2
MF-HB300W-L21200 L x 342 W x 55 H5.5kg15.5kg1245 L x 387 W x 228 H
Product detail 1 Product detail 2 Product detail 3
Product detail 4 Product detail 5 Product detail 6

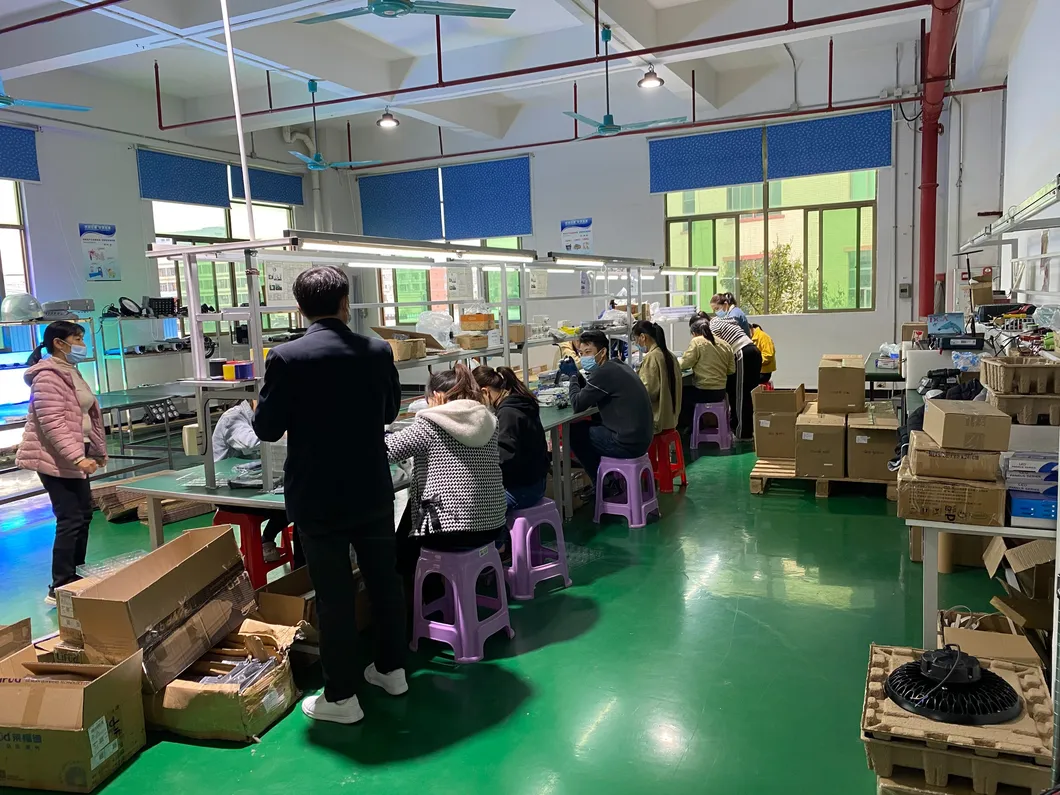

Production line
Warehouse application
Frequently Asked Questions
What is the maximum efficiency of these high bay lights?
These smart LED high bay lights offer a high luminous output of up to 200LM/W, which can save up to 50% energy compared to traditional lighting.
What intelligent control options are supported?
The lights support multiple control methods including infrared remote control, Zigbee, Bluetooth Mesh, high-altitude microwave sensors, and infrared light sensors.
How long is the expected lifespan and warranty?
The product has an L80 lumen maintenance of 100,000 hours and comes with a professional 5-year warranty.
Are these lights suitable for extreme temperatures?
Yes, they are designed to operate in temperatures ranging from -3°C to +55°C (-40°F to +122°F), making them ideal for various industrial environments.
What are the common applications for Linear High Bay lights?
They are widely used in factories, warehouses, logistics centers, gymnasiums, sports arenas, indoor parking lots, and supermarkets.
What mounting options are available?
The lights feature multiple mounting options, with suspended mounting being the standard for industrial facilities.
