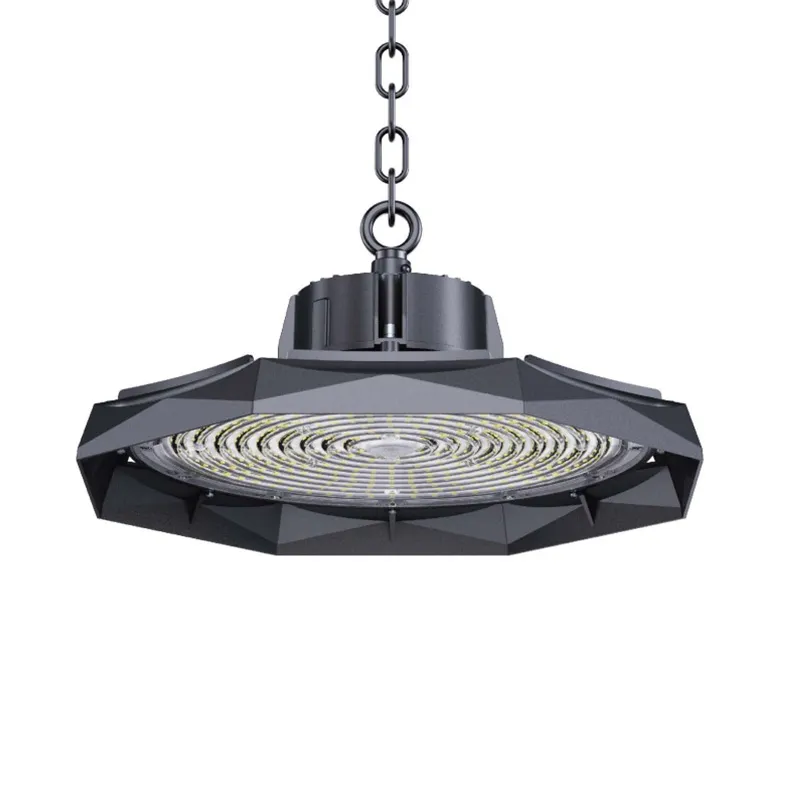

Cappy Light
1 / 5

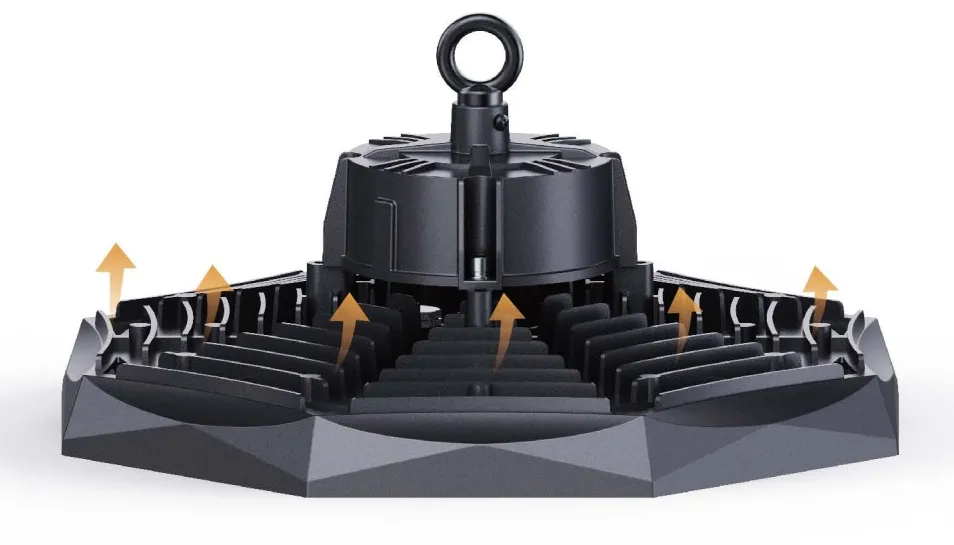

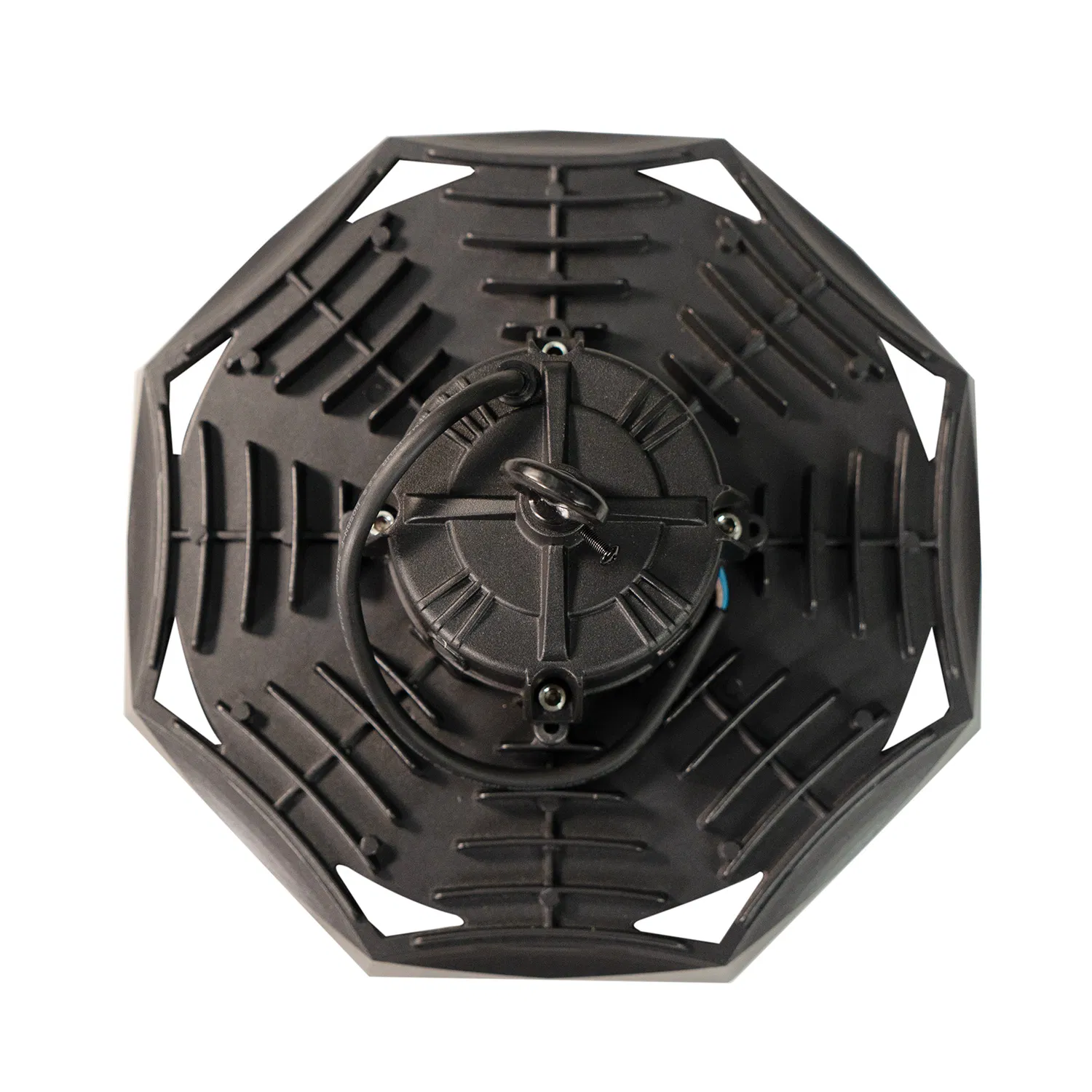

Die Cast Aluminum Material: The hollow heat dissipation structure design effectively increases the heat dissipation area, optimizes the air duct, and realizes three-dimensional efficient heat dissipation, reducing light attenuation and extending the life of the light source.
Leakage Prevention: Polymer thermal engineering materials, insulation level 1, high voltage resistance to protect the operation of the power grid and equipment safety.
Anti-Corrosion: WF2 corrosion resistance level, withstanding temperatures from -40°C to 50°C. Weather resistance designed for 10 years.
Dust Prevention: Fully enclosed design is dustproof, waterproof, and mosquito-proof, reducing hazards in factory workshops.

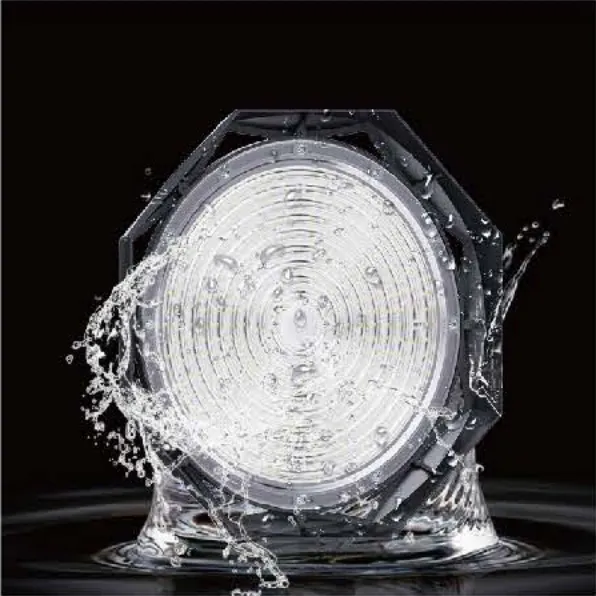

IP66: Prevent water spraying from any direction.
IK08: Protection against harmful mechanical impact.
| Model | JY-LZM100 | JY-LZM150 | JY-LZM200 |
|---|---|---|---|
| Power | 100W | 150W | 200W |
| Nominal Voltage | AC200-240V, 50/60Hz | ||
| LED Chip | SMD2835 | SMD3030 | ||
| Luminous Efficiency | 160 Lm/W | ||
| Lumen Output | 16,000 lm | 24,000 lm | 32,000 lm |
| CRI | CRI70 (CRI80 optional) | ||
| CCT | 6500K / 4000K | ||
| IP / IK Rating | IP66 / IK08 | ||
| Working Environment | -40ºC ~ 50ºC | ||
| Power Factor | >0.95 | ||
| Net Weight | 1.85 kg | 2.15 kg | 2.75 kg |

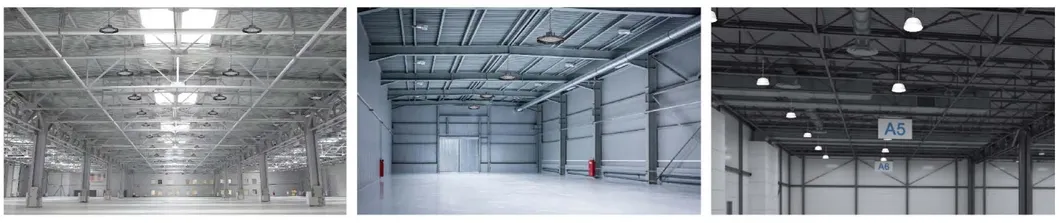

Space Lighting: This series is ideal for commercial spaces, workshops, warehouses, offices, and multi-purpose environments due to its harmonious lighting and reliable performance.

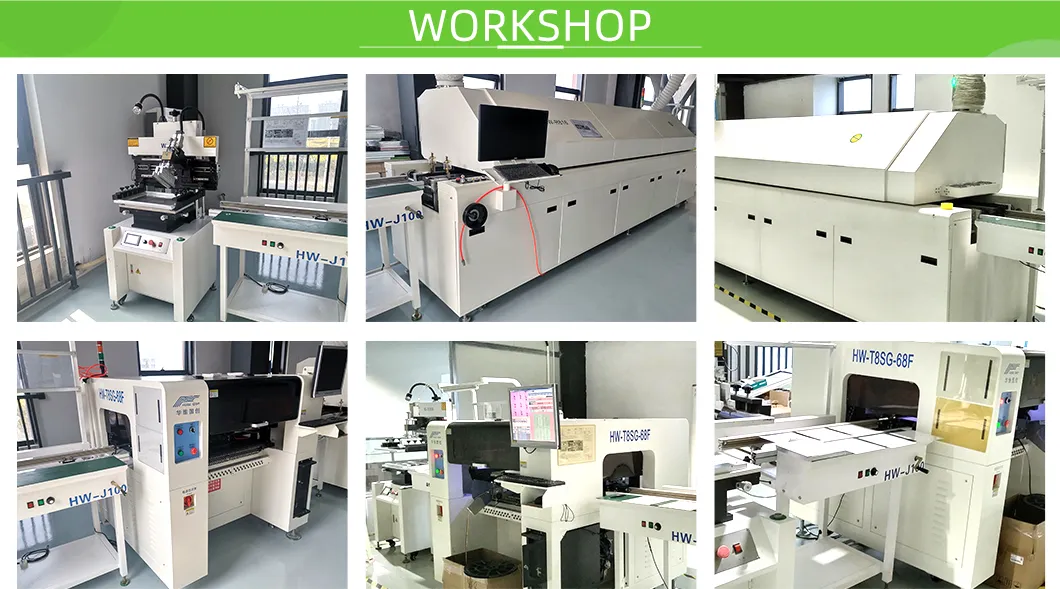

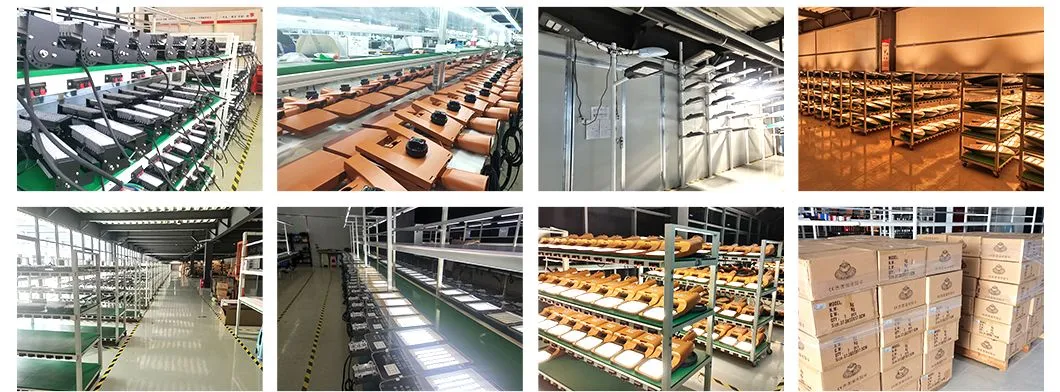

The company operates a large-scale production base covering 60 acres with a 15,000 square meter lighting production workshop. With 15 production lines, the annual output reaches up to 500,000 sets of LED fixtures.
Strict quality inspection processes are in place, including charge/discharge testing, insulation testing, aging testing, and structural testing. Our products adhere to ISO quality management systems and have passed global certifications such as CE, CCC, and ROHS.
