High Efficiency 8m 60W Wind Solar Hybrid LED Light

1 / 5

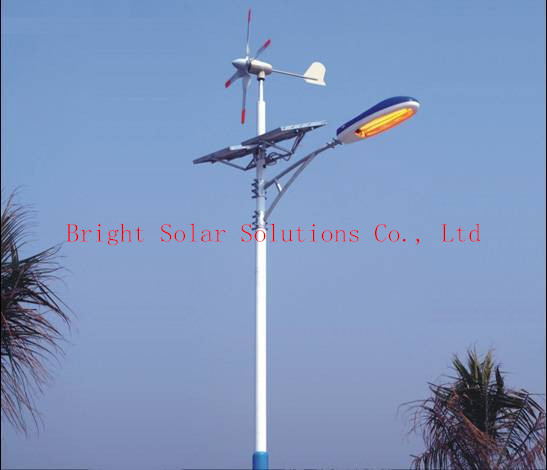

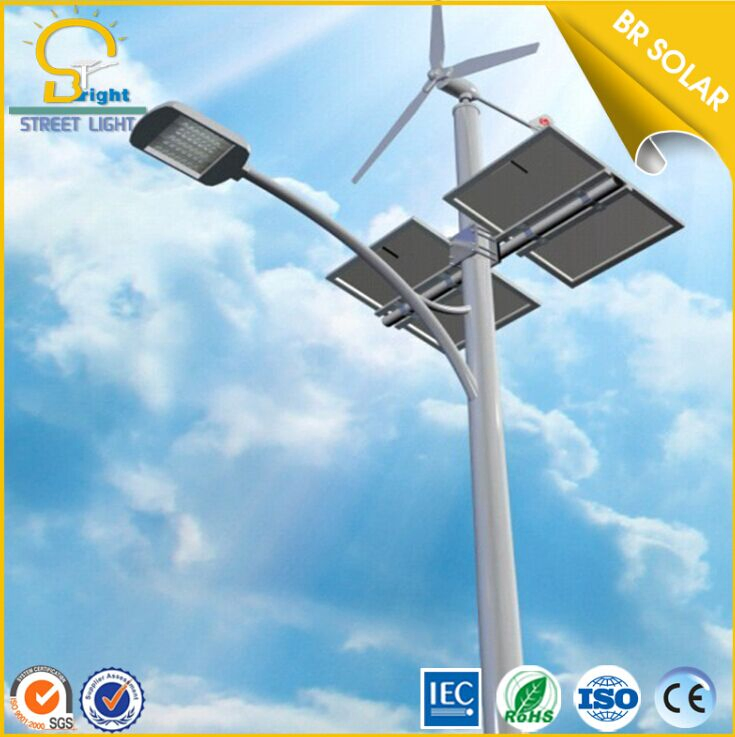

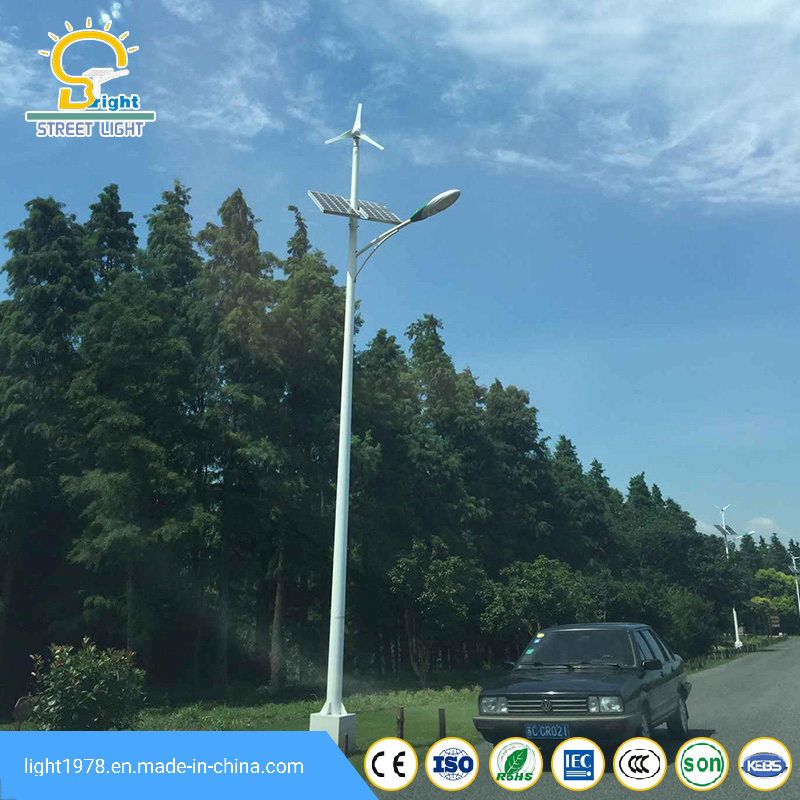

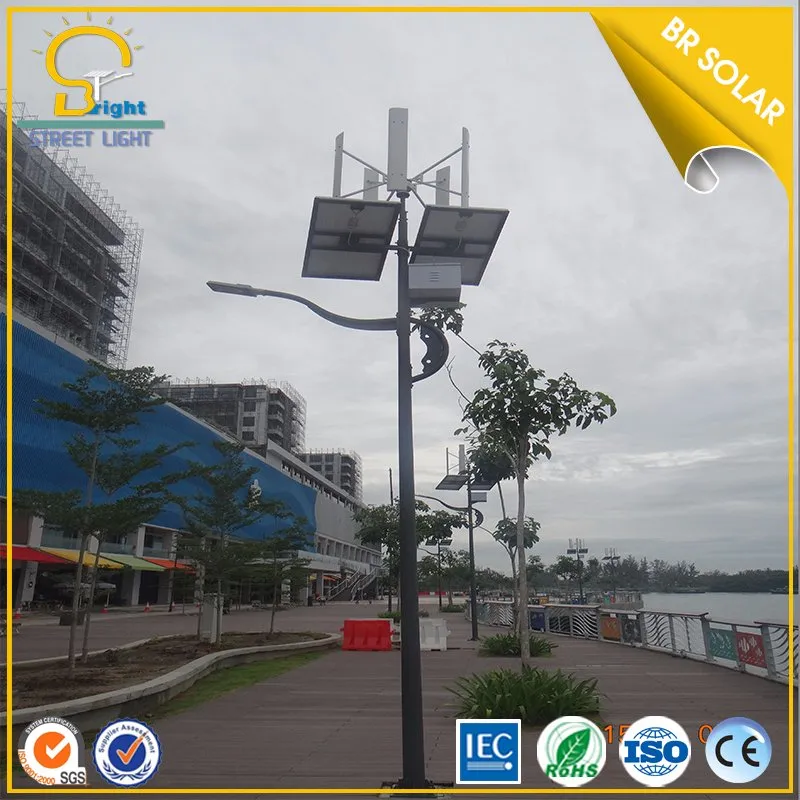

High Efficiency 8m 60W Wind Solar Hybrid LED Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.BR-SWW-006

Lamp MaterialAluminum

Lamp Power60W

Power SupplyAC, Solar, DC, Wind

ApplicationHighway, Square, Garden

IP RatingIP65

Voltage24V, 220V

Pole Height3m to 12m

Solar PanelPolycrystalline High Efficiency

Battery TypeGelled Battery, Sealed, Deep Cycle

Lighting Time11-12 Hrs/Night (3-5 Rainy Days)

LED ChipCREE, Bridgelux, Epistar

Warranty2 - 5 Years

Capacity5000PC/Month

Product Description

4.0KWH Design Configuration

Lighting Time: 11-12 Hours/Nights * 3-5 Overcast Weather days

Pole Height	6M	6M	8M	8M
LED Lamps	20W	30W	45W	60W
Solar Panel	110W*1PC	80W*2PC	120W*2PC	150W*2PC
Solar Battery	100Ah/12V*1PC	150Ah/12V*1PC	120Ah/12V*2PC	150Ah/12V*2PC
Controller	10A/12V	15A/12V	10A/24V	15A/24V

5.0KWH Design Configuration

Pole Height	6M	6M	8M	8M
LED Lamps	20W	30W	45W	60W
Solar Panel	90W*1PC	65W*2PC	90W*2PC	120W*2PC
Solar Battery	100Ah/12V*1PC	150Ah/12V*1PC	120Ah/12V*2PC	150Ah/12V*2PC

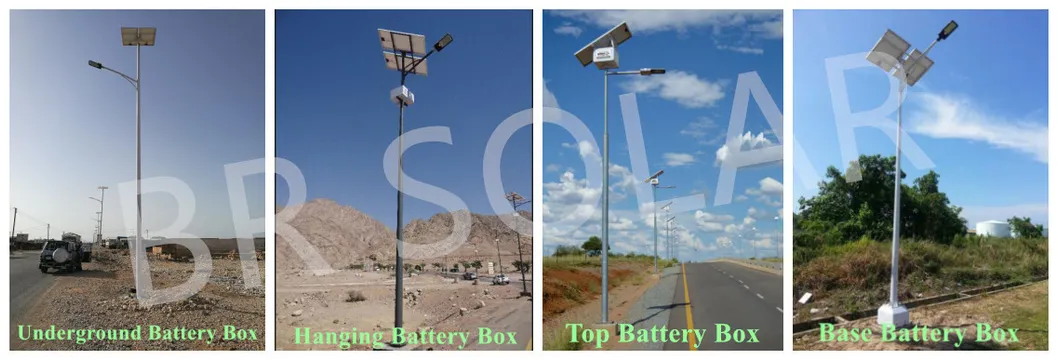

Battery Box Options

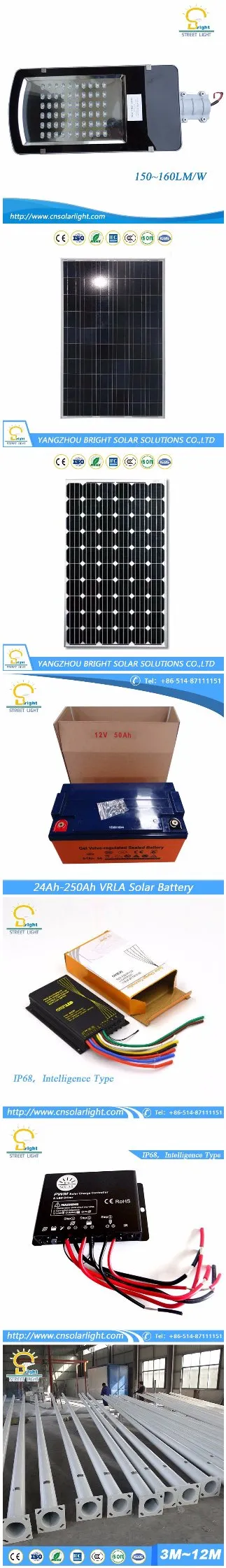

Main Components

LED Street Lamp (9W-250W)

High-Pressure Die-Casting Aluminum Body, IP65/IP68
Reflector: High Purity Aluminum or SS304 Mirror Polish
Cover Glass: High Strength Toughened Glass
Lifespan: 50,000 - 100,000 Hrs

Solar Panel (Poly & Mono Silicon)

Systematic Flash Test On Each Module
IEC61215 Standards Compliance
20-25 Years Lifespan

Intelligent Charge Controller

IP68 Rating Waterproof Design
MCU Based Intellectual Control
Automatic Light, Time, and Temperature Control

Steel Pole (3M-12M)

Material: Q345B/A572 or Q235B/A36
Process: Hot-dip Galvanization or Powder Coating

System Advantages

Energy Saving: Save 60%~80% power compared to traditional sources.
High Performance: Higher brightness intensity and superior color rendition.
Cost Effective: Zero electricity costs, no expensive cabling or transformers required.
Environmental: No radiation, low light pollution, and elimination of hazardous disposal.
Long Life: Operates for 12-22 years if used 12hrs/night.
Directional Lighting: Adjustable angles to meet specific road-rectangular requirements.

Payment & Delivery

Payment Terms	T/T (Preferred)	30% Advance, 70% before delivery (EXW/FOB) or against B/L (CFR/CIF)
Payment Terms	L/C	Accepted for amounts above USD 100,000 (At Sight)
Small Payments	West Union / PayPal	Total amount less than USD 1,000
Delivery Time	15-20 Working Days after receiving down payment for one container

Frequently Asked Questions

Q: What is the lifespan of the LED and Solar Panels? A: The LED lamps have a lifespan between 50,000 to 100,000 hours, while the solar panels are designed to last 20 to 25 years.

Q: How many days can the light work during rainy or overcast weather? A: Our standard designs support 3 to 5 consecutive overcast or rainy days while maintaining 11-12 hours of light per night.

Q: Is the system waterproof and suitable for harsh environments? A: Yes, the lamp body is IP65 rated and the solar charge controller is IP68 rated, making the entire system highly resistant to water and dust.

Q: What materials are used for the poles? A: We use high-quality Q235B or Q345B steel. The poles undergo hot-dip galvanization and optional powder coating to prevent corrosion.

Q: Can the lighting angle be adjusted? A: Yes, the downward orientation of the light allows for adjustment of lighting angles and range to perfectly meet the road's rectangular requirements.

Q: What are the primary power supply options? A: The system is versatile and can be powered by AC, Solar, DC, or Wind energy sources.
