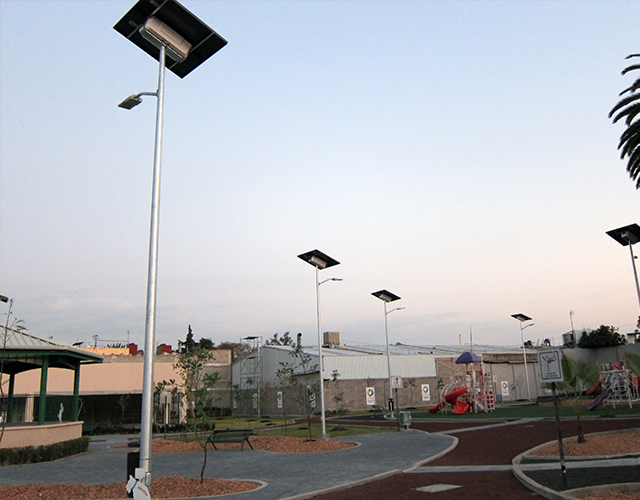

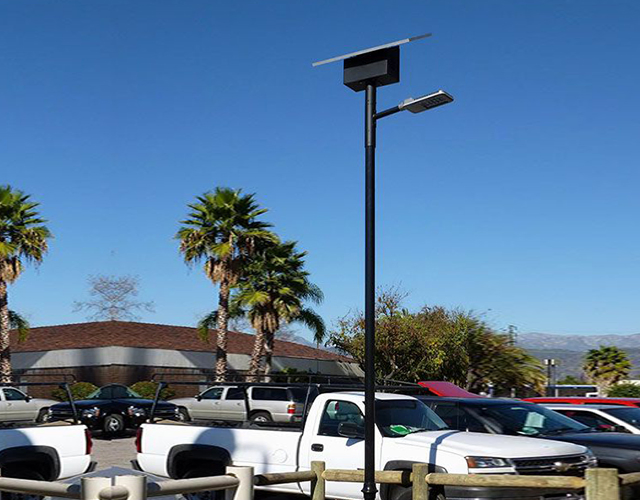

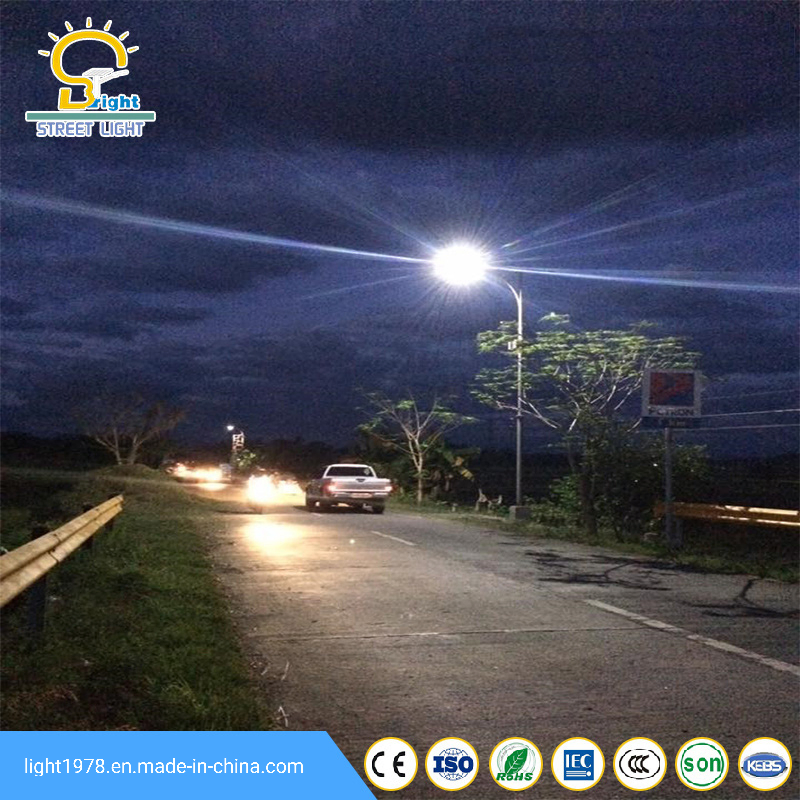

Hot Sell No. 1 8m 60W LED Solar Street Lighting
Hot Sell No. 1 8m 60W LED Solar Street Lighting
Hot Sell No. 1 8m 60W LED Solar Street Lighting
Hot Sell No. 1 8m 60W LED Solar Street Lighting
Hot Sell No. 1 8m 60W LED Solar Street Lighting
1 / 5
Hot Sell No. 1 8m 60W LED Solar Street Lighting
Hot Sell No. 1 8m 60W LED Solar Street Lighting
Hot Sell No. 1 8m 60W LED Solar Street Lighting
Hot Sell No. 1 8m 60W LED Solar Street Lighting
Hot Sell No. 1 8m 60W LED Solar Street Lighting

Hot Sell No. 1 8m 60W LED Solar Street Lighting

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
BR-20
Power
20W-60W
Projection Distance
>35m
Application
Park, Square, Factory, Garden
IP Rating
IP65
Certification
CCC, CE, CQC, GS, RoHS
LED Chips
CREE / Bridgelux
Color Temp
Cool/Warm/Pure White
Warranty
2 - 5 Years
Capacity
6000PC/Month
Product Description

8M Hot-dip Galvanized Pole Aluminum Lamp Body 50W LED Solar Street Light

◈Pole Height: 4M-12M. Plastic coated on hot-dip galvanized steel pole (Q235), anti-rust and wind resistant.
◈LED Power: 20W-120W DC type, 20W-500W AC type.
◈Solar Panel: 60W-350W MONO or POLY modules, A-grade cells.
◈Intelligent Controller: IP65/IP68, Automatic light and time control with protection functions.
◈Battery: 60AH-250AH fully-sealed maintenance-free gelled battery.
◈Lighting Performance: 11-12 Hrs/Night, 2-5 backup rainy days.
Technical Design Schemes

4.0KWH Design (11-12 Hours/Night * 3-5 Rainy Days)

Pole Height6M7M8M9M
LED Lamps30W40W60W80W
Solar Panel140W*1 Poly80W*2 Poly140W*2 Poly160W*2 Mono
Battery120Ah*1150Ah*1120Ah*2150Ah*2
Controller10A/12V15A/12V15A/24V20A/24V

5.0KWH Design (11-12 Hours/Night * 3-5 Rainy Days)

Pole Height6M7M8M9M
LED Lamps30W40W60W80W
Solar Panel120W*1 Poly140W*1 Poly120W*2 Poly140W*2 Mono
Battery120Ah*1150Ah*1120Ah*2150Ah*2
Controller10A/12V15A/12V15A/24V20A/24V
Quality & Component Advantages

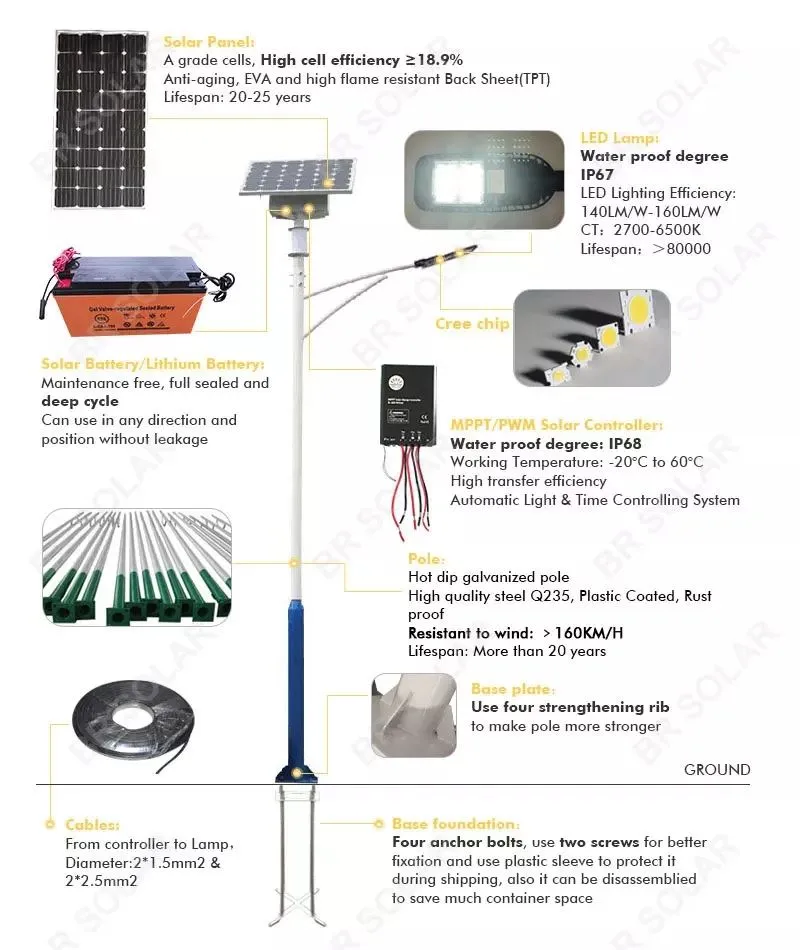

Solar Lighting System

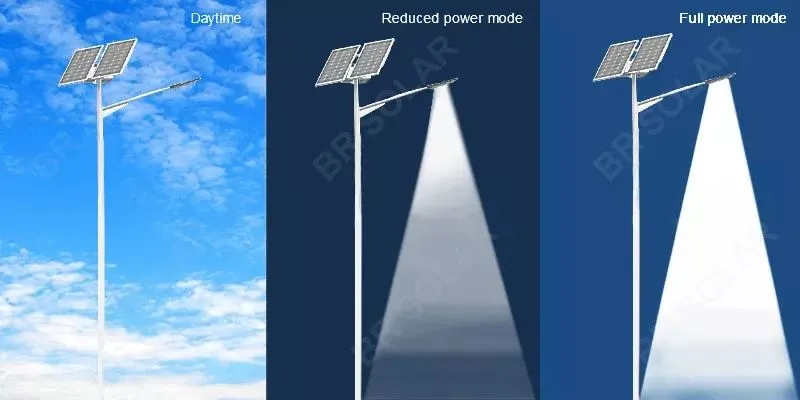

Intelligent Mode

Solar Panel Quality

  • A Grade Cells: Higher energy conversion rate reaching 20%.
  • 5 Grid Lines: Silver bus bars for better electric conduction.
  • Robust Frame: Thick aluminum frame to resist strong winds.
  • Protection: Four diodes in junction box for system stability.
Solar Panel Comparison

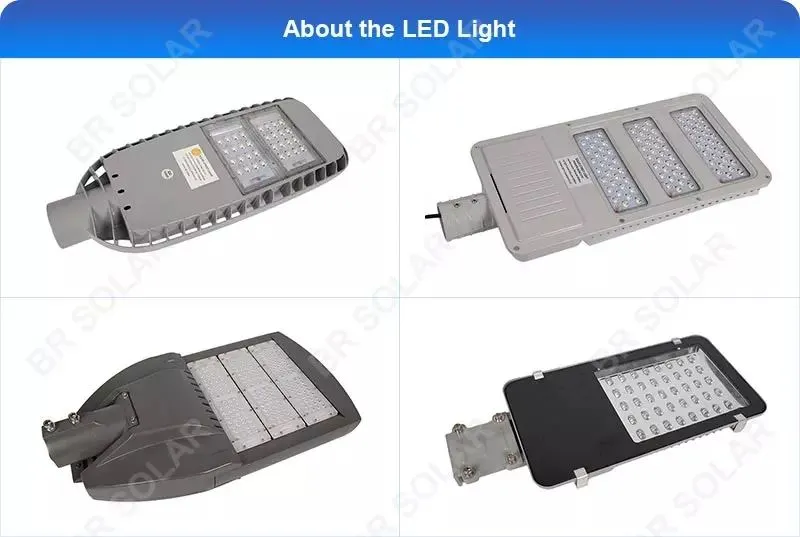

LED Lamp Body

LED Lamps: Die-casting aluminum, IP66-IP68, Cree chips (140LM/W-190LM/W).

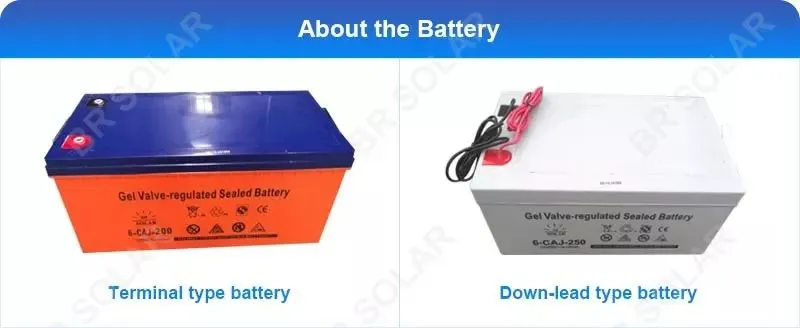

Solar Battery

Gelled Battery: IP68 waterproof, 1000+ cycles lifespan, nanomaterial gel technology.

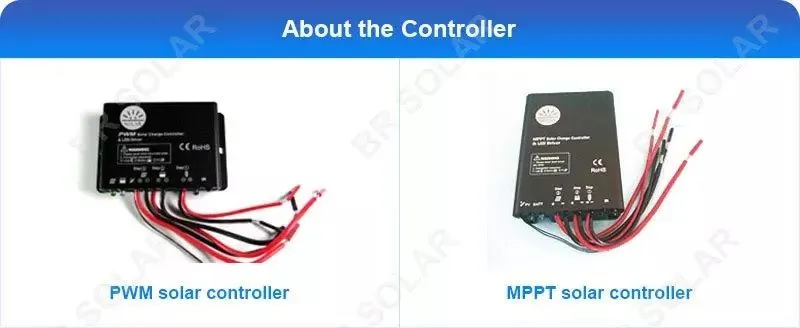

Solar Controller

Smart Controller: PWM/MPPT options, 98% efficiency, automatic identification.

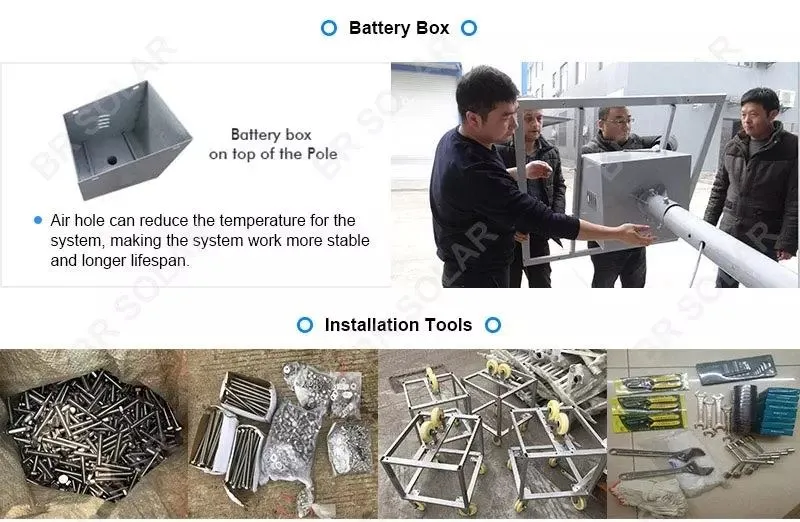

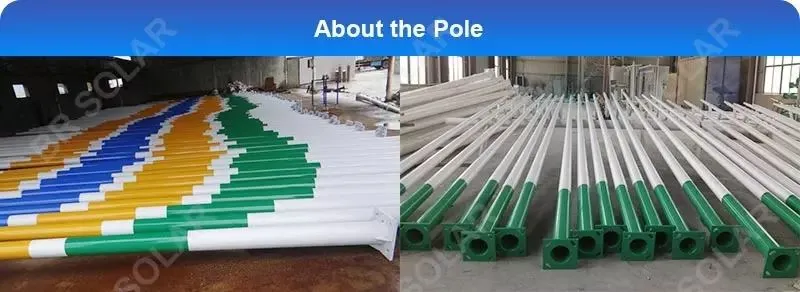

Galvanized Pole

Main Pole: Q235 steel, 160KM/H wind resistance, professional polish technology.

Standardized Production & Certification

All products follow 6S management standards (SEIRI, SEITON, SEISO, SEIKETSU, SHITSUKE, SECURITY) and undergo rigorous waterproof and lighting tests.

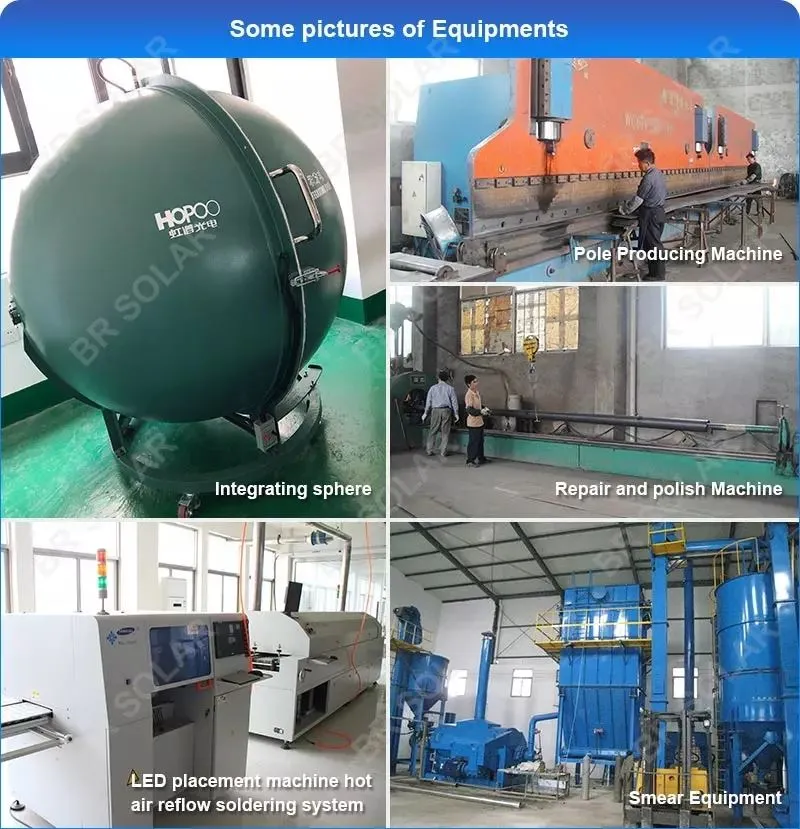

Testing Process
Certificates
Project Installation & Visits
Customer Visit

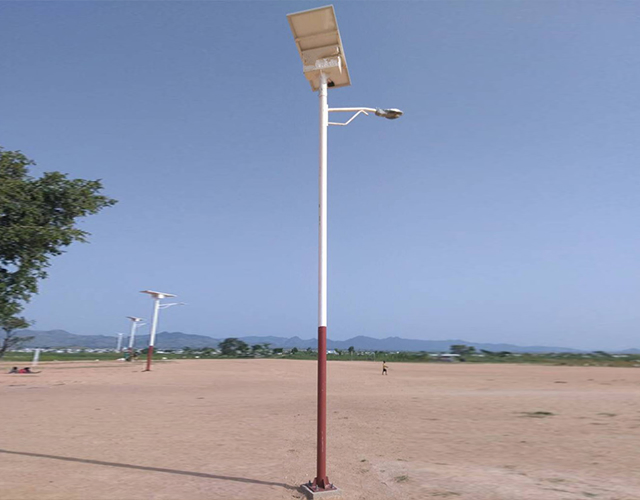

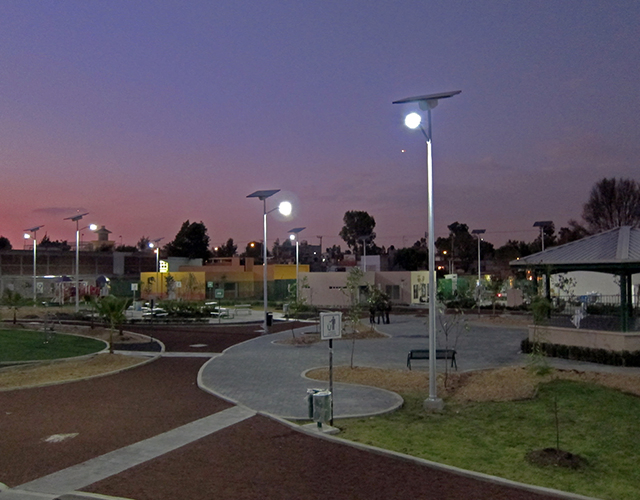

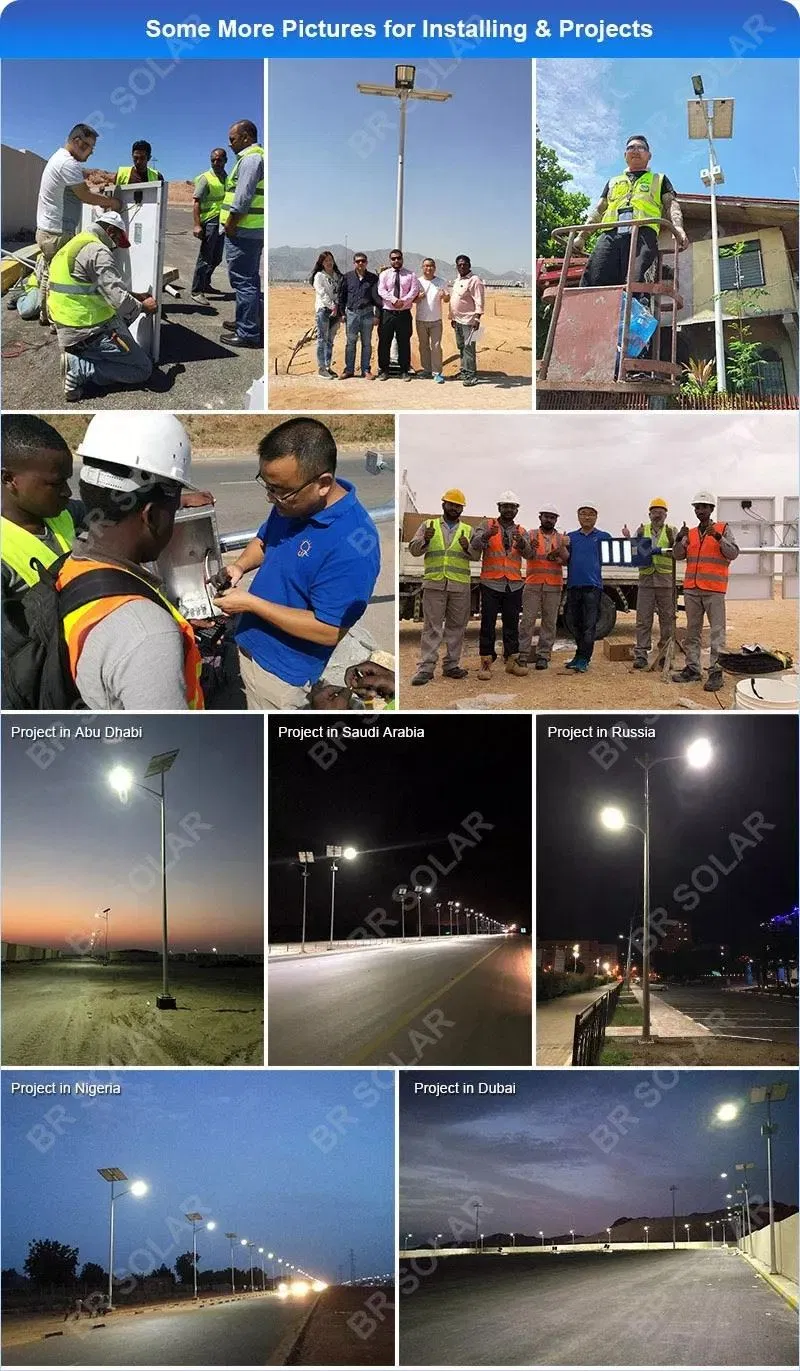

Installation Case
Frequently Asked Questions
What is the lifespan of the solar battery?
Our gelled batteries use specialized nanomaterials, providing a lifespan of over 1000 cycles at 25°C, which is significantly higher than the industry standard of 600 cycles.
Can these lights withstand strong winds?
Yes, our poles are made of hot-dip galvanized Q235 steel with a thickness of 3mm (for 6M poles), designed to resist winds up to 160KM/H.
What happens during consecutive rainy days?
The system is designed with 3-5 days of backup power, ensuring the street lights continue to operate even during overcast or rainy weather.
What is the waterproof rating of the components?
The LED lamps and intelligent controllers are rated at IP66-IP68, meaning they are fully protected against dust and can withstand powerful water jets or immersion.
What kind of warranty is provided?
We offer a standard 3-year guaranteed warranty for the entire system. If any quality issues occur (excluding man-made damage), we provide free repair or replacement. 5-year warranties are also available upon request.
Are the LED chips high brightness?
Yes, we use CREE or Bridgelux chips with a high lumen output ranging from 140LM/W to 190LM/W, ensuring superior brightness and energy efficiency.
