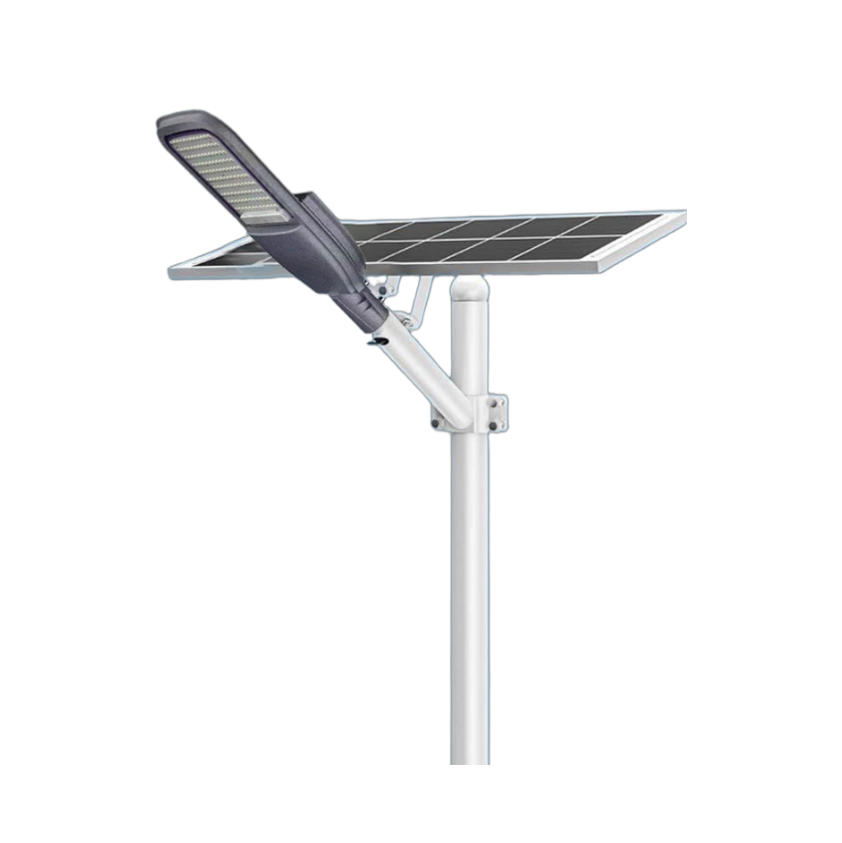

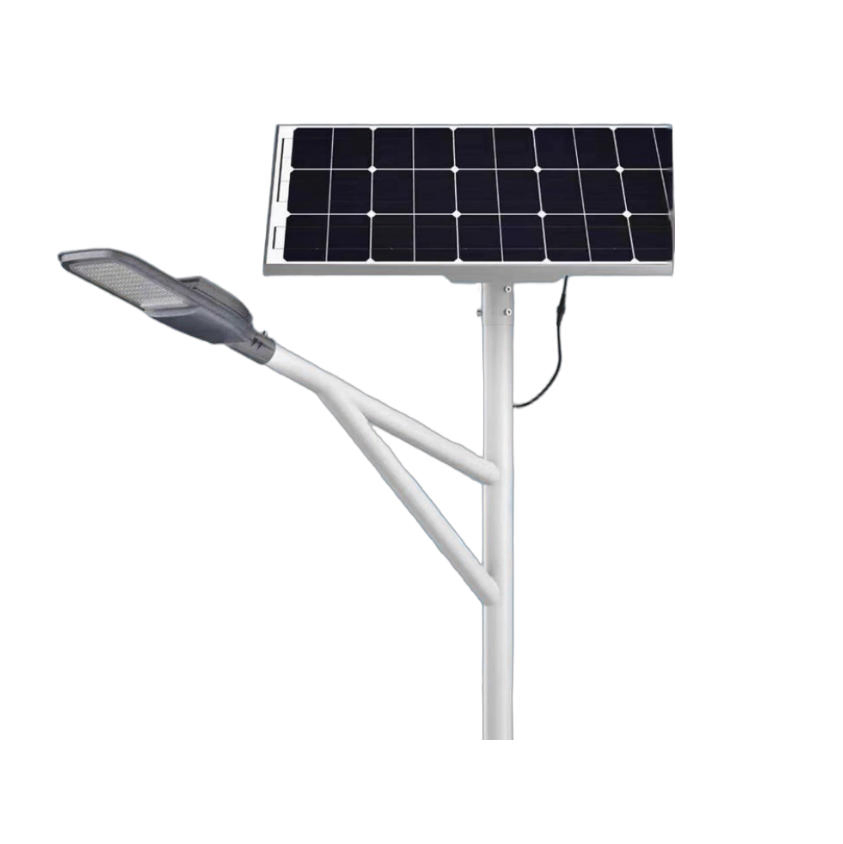

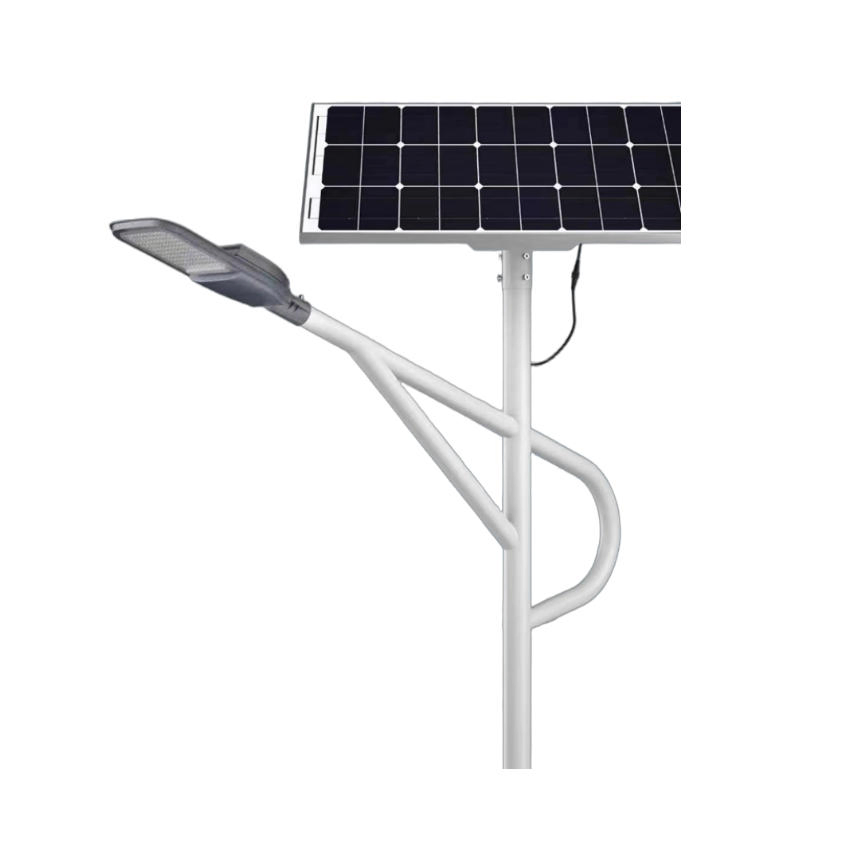

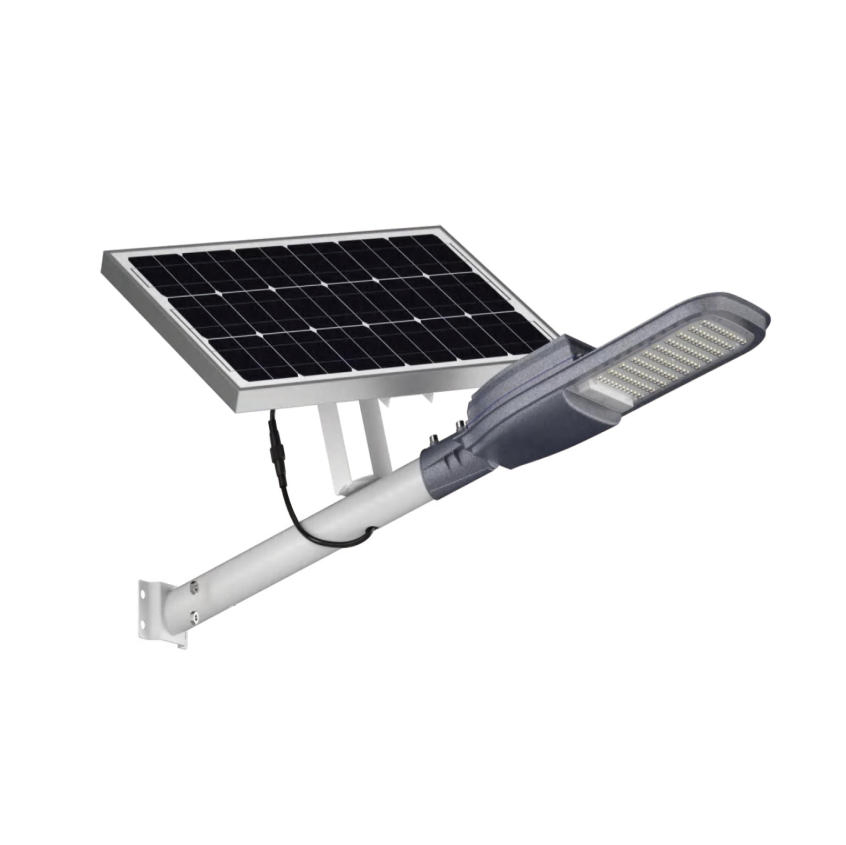

60W High Efficiency Split Solar Street Light All in Two Design with Mono Solar Panel for Main Roads
60W High Efficiency Split Solar Street Light All in Two Design with Mono Solar Panel for Main Roads
60W High Efficiency Split Solar Street Light All in Two Design with Mono Solar Panel for Main Roads
60W High Efficiency Split Solar Street Light All in Two Design with Mono Solar Panel for Main Roads
60W High Efficiency Split Solar Street Light All in Two Design with Mono Solar Panel for Main Roads
1 / 5
60W High Efficiency Split Solar Street Light All in Two Design with Mono Solar Panel for Main Roads
60W High Efficiency Split Solar Street Light All in Two Design with Mono Solar Panel for Main Roads
60W High Efficiency Split Solar Street Light All in Two Design with Mono Solar Panel for Main Roads
60W High Efficiency Split Solar Street Light All in Two Design with Mono Solar Panel for Main Roads
60W High Efficiency Split Solar Street Light All in Two Design with Mono Solar Panel for Main Roads

60W High Efficiency Split Solar Street Light All in Two Design with Mono Solar Panel for Main Roads

Send Inquiry

Product Description

Split Solar Street Light
All in Two Solar Street Light Overview

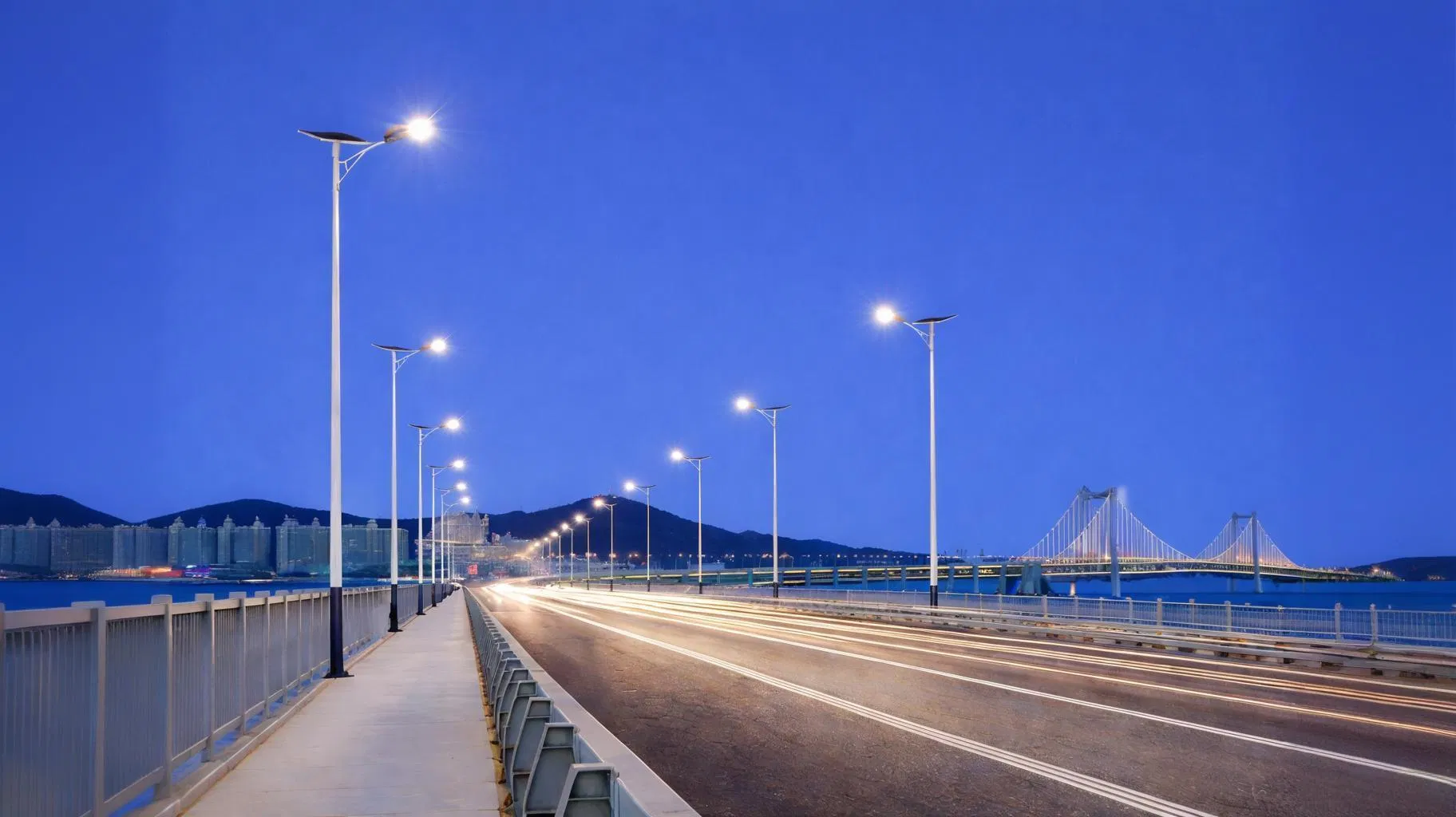

Design
The all in two/ split solar street light is designed for off-grid areas, unstable power supply regions, and projects with high electricity costs. As a reliable all in two solar street light solution, it uses high-efficiency monocrystalline solar panels to charge a LiFePO4 battery during the day and power the LED light at night, delivering stable, grid-free illumination.
Featuring a true split-type structure, the split solar street light allows separate installation of the solar panel and lamp body. This design improves solar energy capture, supports standard panel configurations, and enables flexible customization of panel wattage and battery capacity to match different project needs.
Features & Advantages

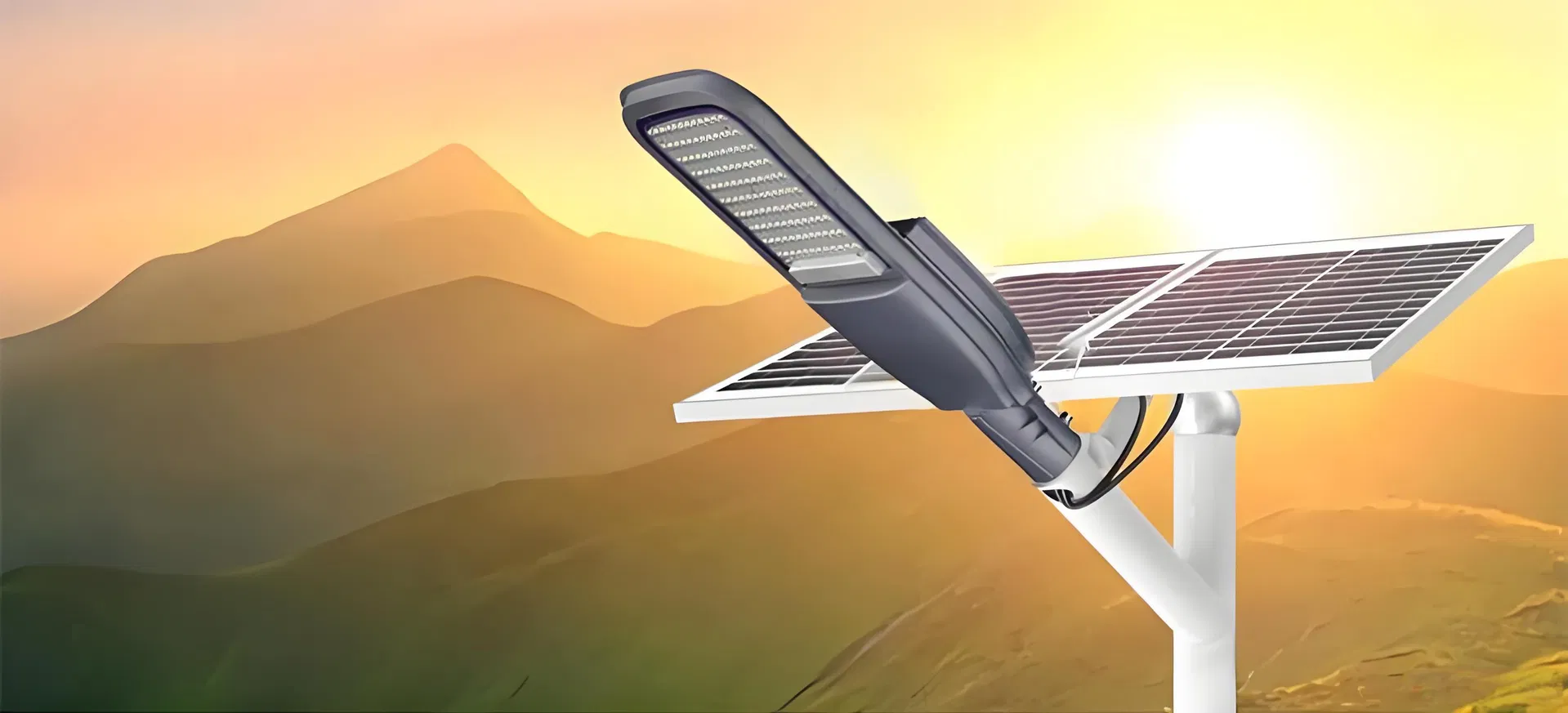

Features
Off-Grid & Cost-Saving Suitable for areas with power shortages, off-grid sites, or high electricity costs, reducing reliance on conventional power.
Efficient Solar Power Generation High-efficiency monocrystalline solar panels ensure reliable charging, even under weak sunlight.
Flexible Split Design Separate lamp body and solar panel design supports standard solar panels, with multiple wattage and battery options.
Smart Lighting Control Preset programs, motion sensing, and remote control automatically adjust brightness for maximum energy savings.
High-Performance LED Chips Premium LEDs deliver high brightness, consistent output, and a lifespan of over 50,000 hours.
Durable LiFePO4 Battery High-safety battery cells with smart charging technology extend service life and improve reliability.

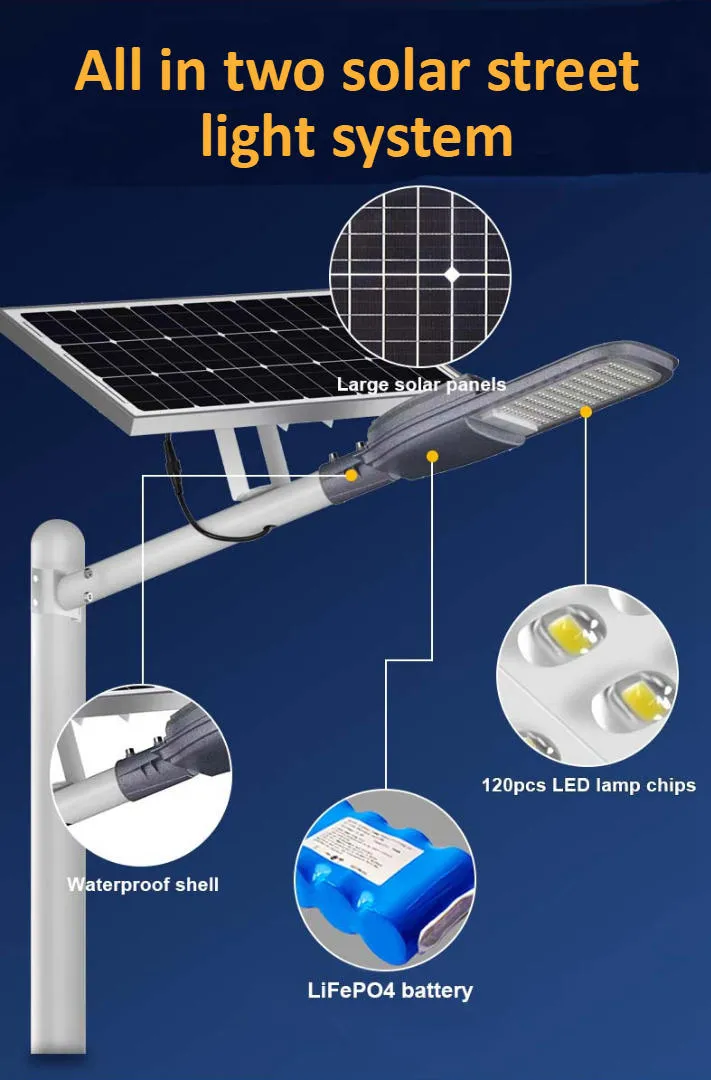

All in Two System
System 1
All-in-two solar street lights feature an independent solar panel with standard specifications, allowing flexible selection of solar panel power to match project requirements.

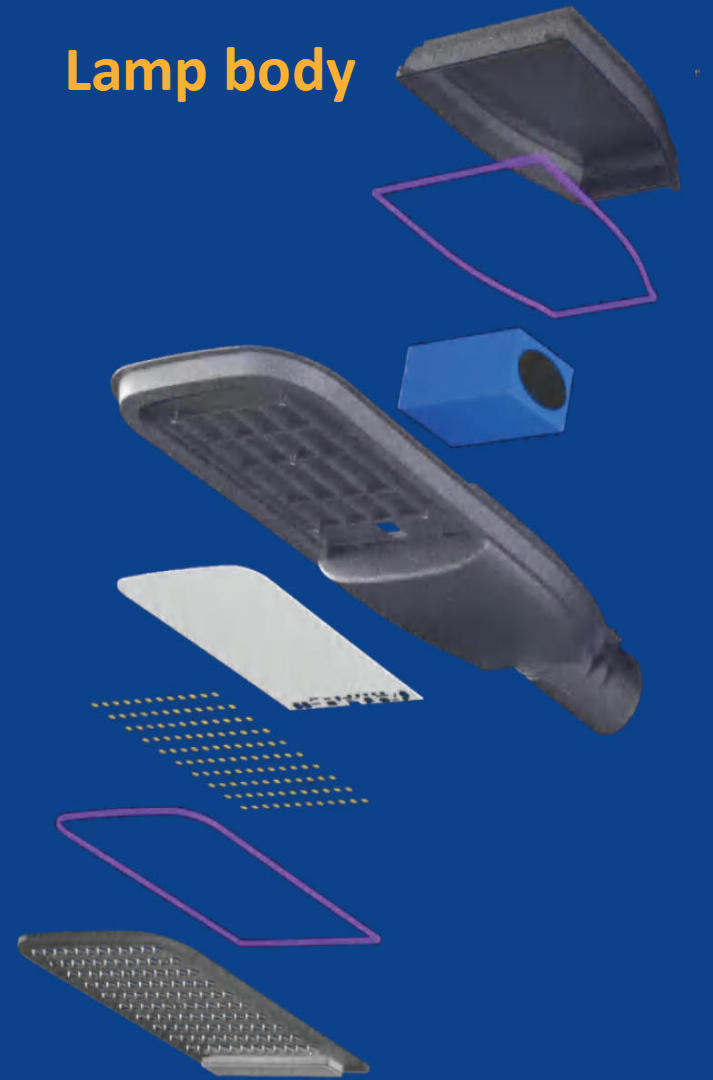

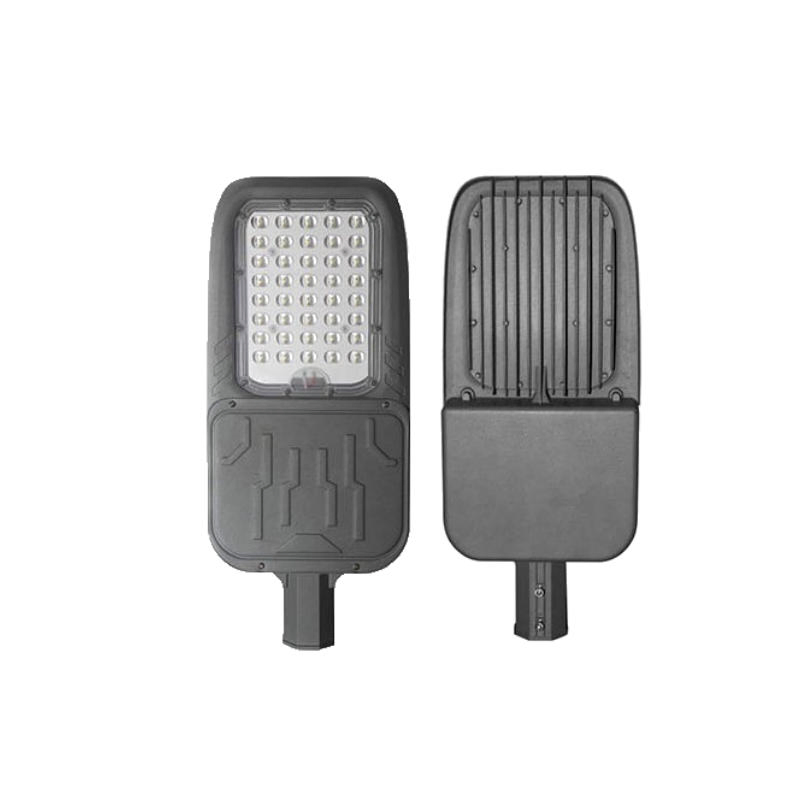

Optimized Light Body
System 2
Robust aluminum die-casting housing provides high structural strength and corrosion resistance. The large heat sink maintains stable light output.
Key Components

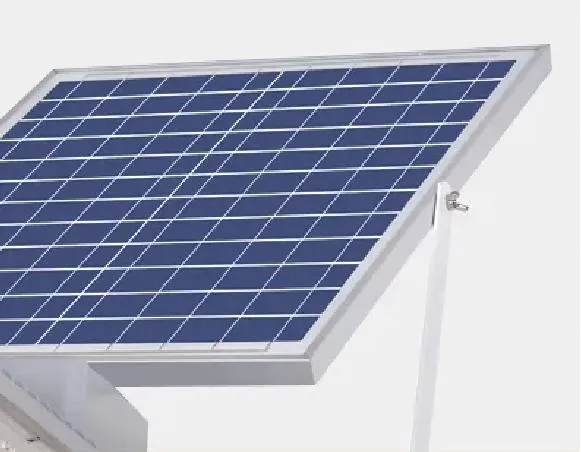

Mono Solar Panel
Mono Solar Panel

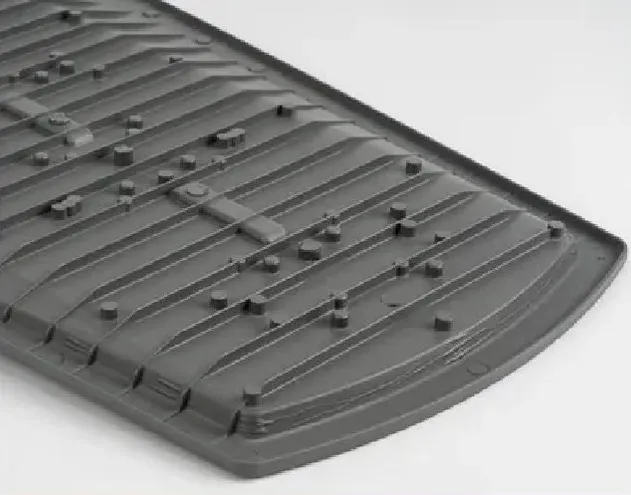

Robust Housing
Robust Housing

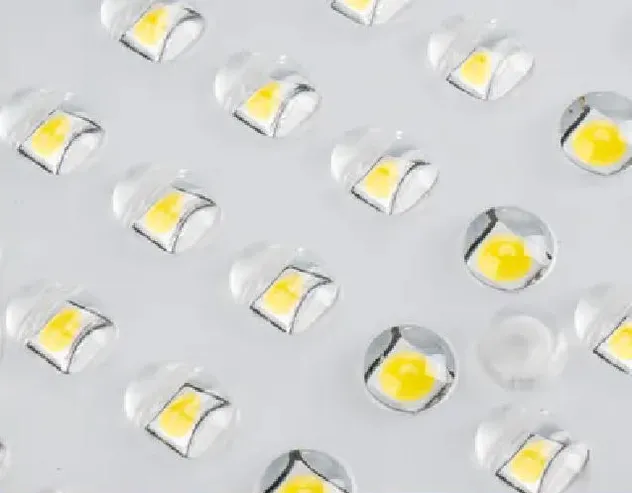

LED Chips
High Efficiency LED Chips
Waterproof Connector
Waterproof Connector

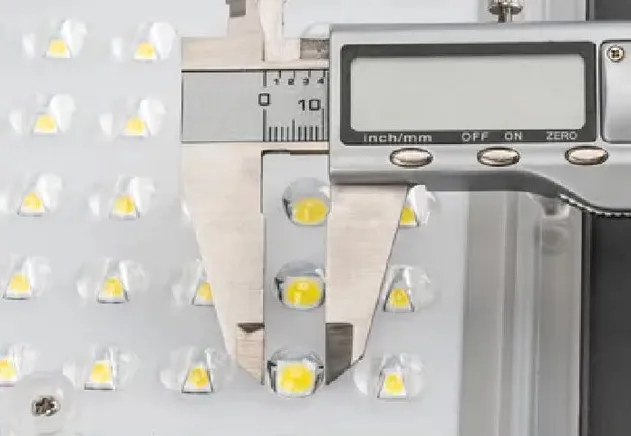

Optical Lens
Patented Optical Lens
Remote Control
Remote Control
Specifications
Model SSTL-026-20 SSTL-026-30 SSTL-026-40 SSTL-026-60 SSTL-026-80
LED Quantity SMD3030 120pcs SMD3030 120pcs SMD5054 120pcs SMD5054 120pcs SMD5054 120pcs
Rated Power 20W 30W 40W 60W 80W
Color Temperature 3000~6500K 3000~6500K 3000~6500K 3000~6500K 3000~6500K
Efficiency 130 lm/W 130 lm/W 130 lm/W 130 lm/W 130 lm/W
LED Life Time 50000h 50000h 50000h 50000h 50000h
Protection Grade IP65 IP65 IP65 IP65 IP65
Solar Panel Power 6V 35W 6V 50W 6V 60W 6V 80W 6V 100W
Battery Capacity 30Ah/96Wh 40Ah/128Wh 50Ah/160Wh 70Ah/224Wh 100Ah/320Wh
Application 1
Application 2

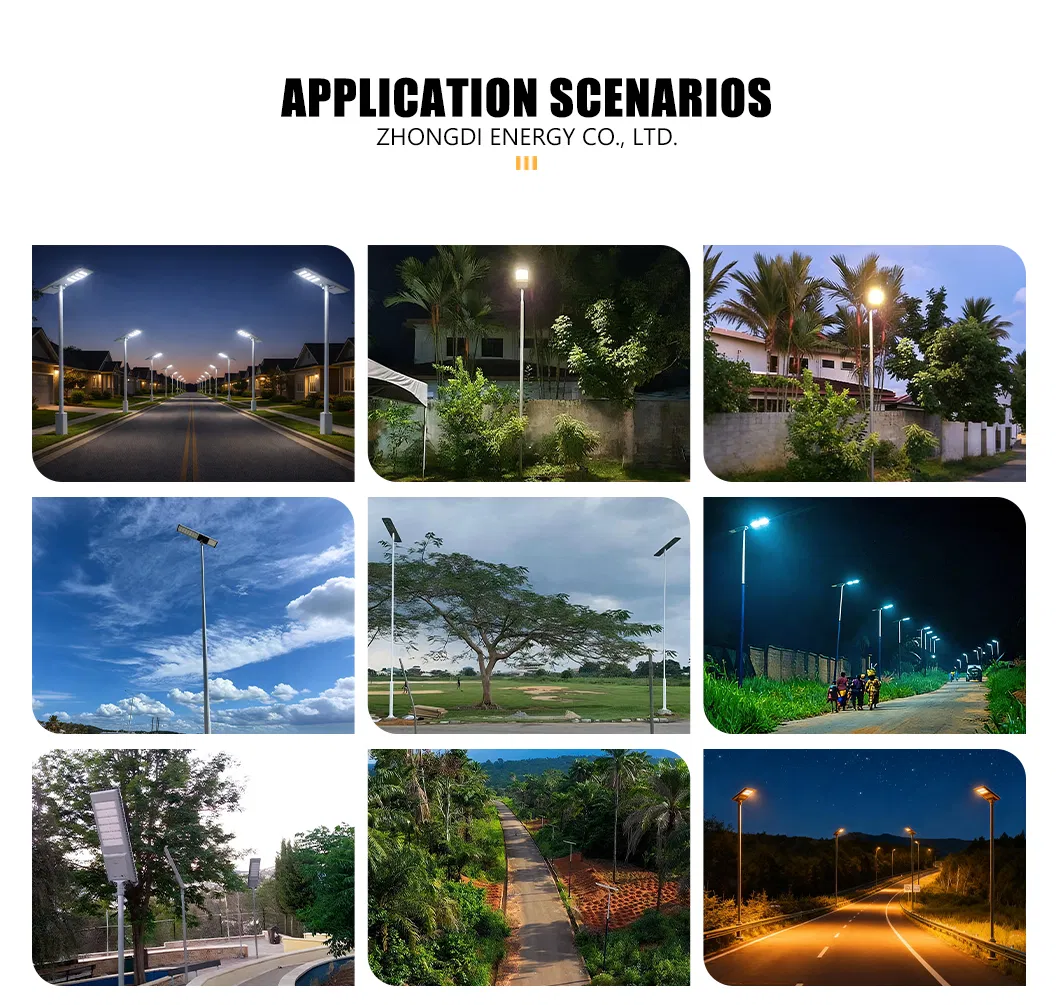

Application 3
Frequently Asked Questions
What is an all in two solar street light?
An all in two solar street light is an integrated lighting system that separates the solar panel from the lamp body (which contains the battery and controller) to optimize sun exposure and system flexibility.
How many hours can the solar street light work at night?
Depending on battery capacity, lighting mode, and sunlight conditions, it typically provides 8–24 hours of continuous lighting after a full charge.
Can the solar street light work during rainy or cloudy days?
Yes. The built-in lithium battery is designed to support 2–5 consecutive rainy or cloudy days, depending on the model and configuration.
What installation height is recommended?
The recommended installation height usually ranges from 4 to 10 meters, depending on the wattage and road width.
Does it support motion sensor or dimming functions?
Yes, most models support PIR motion sensors and intelligent dimming programs to maximize energy efficiency.
What materials are used for the housing?
The housing is made of high-grade die-cast aluminum with an anti-corrosion coating, perfect for harsh outdoor environments.
